Baldor ECS100A4H7EF4 - 7.5 HP, 1800RPM, 3 Phase, 60HZ, 184T, TEFC, Axial 60HZ Three Phase 7.5 HP

Save $1,111.00
BaldorSKU: ECS100A4H7EF4

Price:
Sale price$3,333.00 Regular price$4,444.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

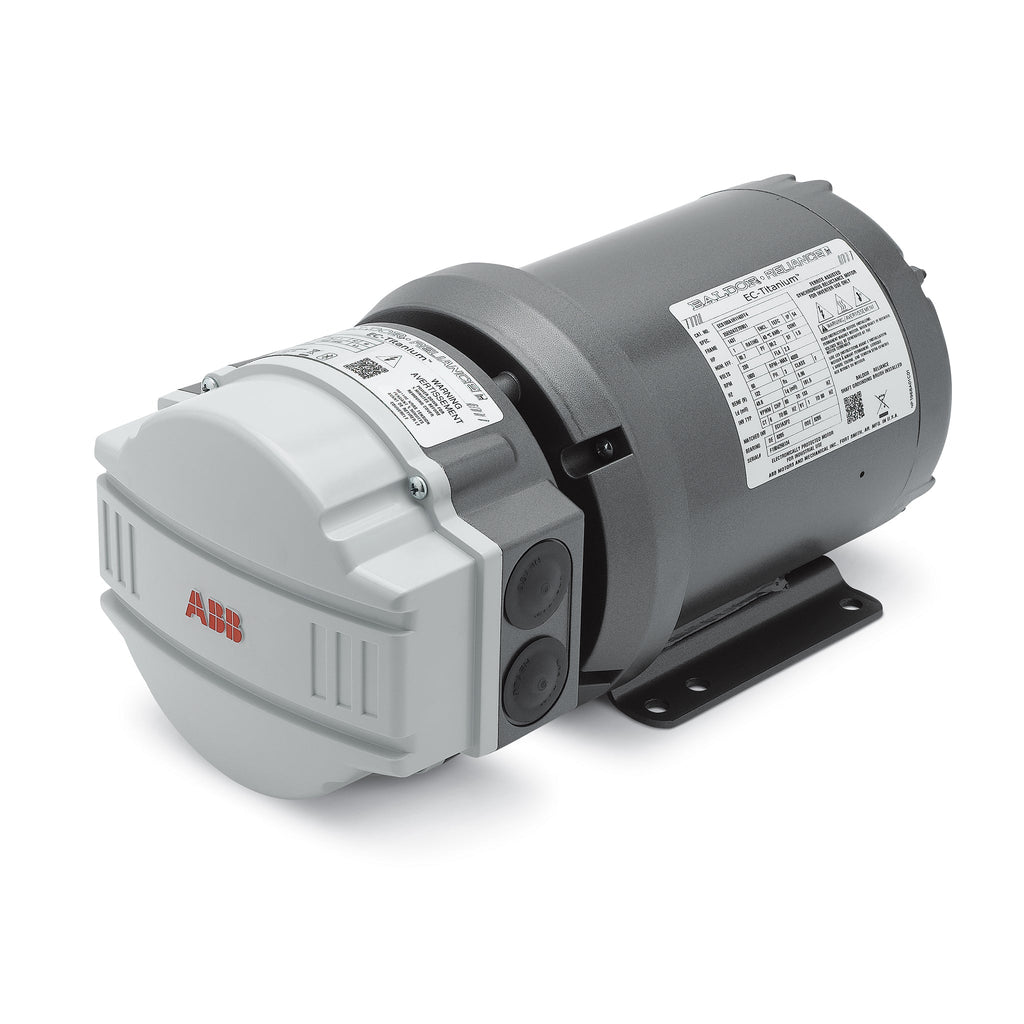

Baldor-Reliance EC Titanium Motor - 7.5 HP

Introducing the Baldor ECS100A4H7EF4, a high-performance EC Titanium Motor designed for efficiency and reliability. With a power output of 7.5 HP and a speed of 1800 RPM, this 3-phase motor operates at 60Hz, making it ideal for a variety of industrial applications.

Key specifications include:

  • Power: 7.5 HP
  • Speed: 1800 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 184T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Type: Axial

This motor is part of the Baldor-Reliance Motors & Drives series, known for their durability and energy efficiency. Whether you need a replacement for your existing setup or are looking to upgrade your equipment, the Baldor EC Titanium Motor is a top choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECS100A4H7EF4 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568951125
Supplier Part Number ECS100A4H7EF4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Approximate Weight (lbs) 104.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100A4H7EF4
Constant Torque Speed Range 6
Design Code B
Drip Cover No Drip Cover
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184T
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 3 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3648B
Mounting Arrangement F1
Number of Poles 4
Overall Length 23.76 IN
Phase 3
Pulley Face Code Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Shaft Diameter 1.125 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed Code Single Speed
Starting Method INVERTER SPECIAL
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
