Baldor ECS100A4H3EB4 - 3 HP, 1800RPM, 3 Phase, 60HZ, 182TC, TEFC, Axial 60HZ Three Phase 3 HP

Save $853.25
BaldorSKU: ECS100A4H3EB4

Price:
Sale price$2,559.75 Regular price$3,413.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

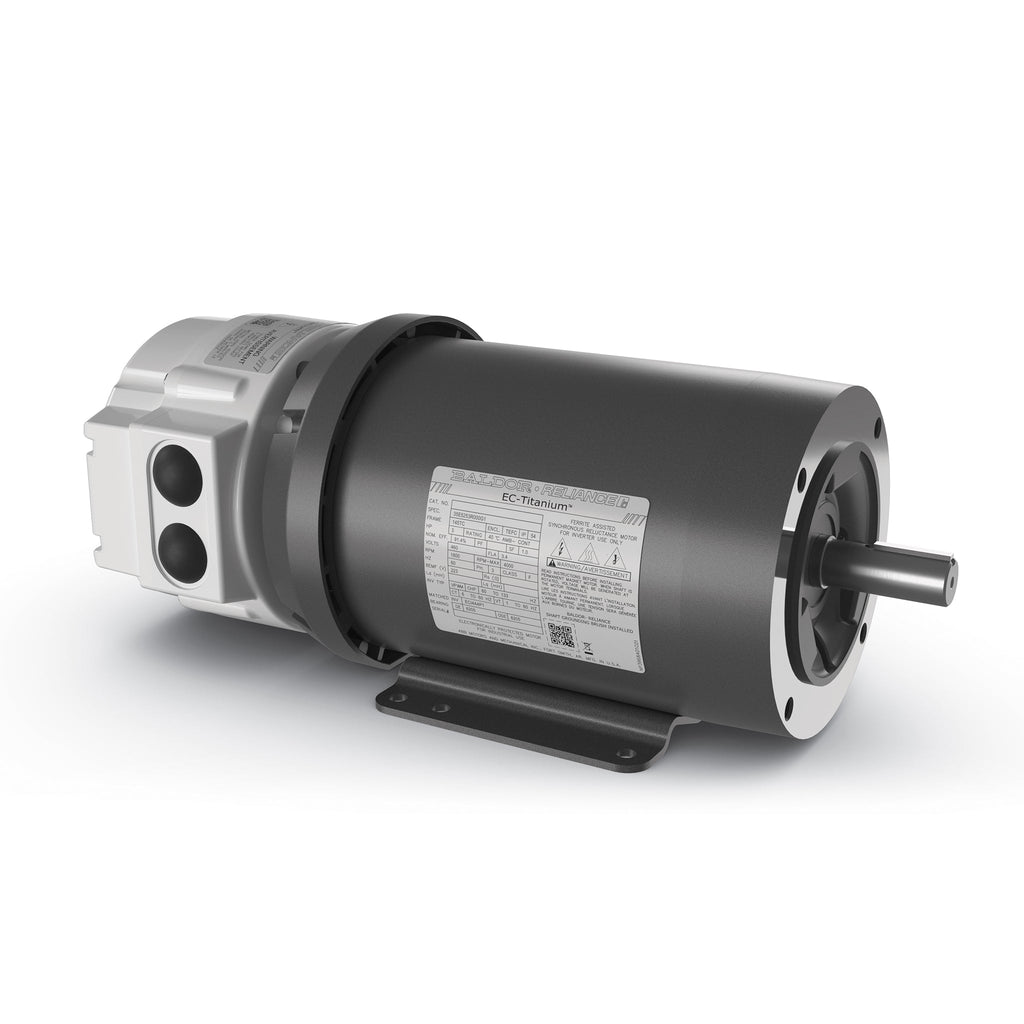

Baldor-Reliance EC Titanium Motors - ECS100A4H3EB4

Introducing the Baldor-Reliance EC Titanium Motor, a high-performance solution designed for demanding applications. This 3 HP motor operates at 1800 RPM and is engineered for 3-phase power at 60Hz, making it ideal for various industrial uses.

  • Power: 3 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 182TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Model Number: ECS100A4H3EB4

This motor is built for durability and efficiency, making it a reliable choice for your operational needs. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor ECS100A4H3EB4. If you encounter any difficulties in locating the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568958124
Supplier Part Number ECS100A4H3EB4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 85.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100A4H3EB4
Constant Torque Speed Range 6
Current @ Voltage 3.700 A @ 460.0 V
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.8 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.7 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3624B
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 22.25 IN
Phase 3
Power Factor 97
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
