Baldor ECS100A4H2DF4 - 2 HP, 1800RPM, 3 Phase, 60HZ, 145T, 3524B, TEFC, F1 60HZ Three Phase 2 HP

Save $700.25
BaldorSKU: ECS100A4H2DF4

Price:
Sale price$2,100.75 Regular price$2,801.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

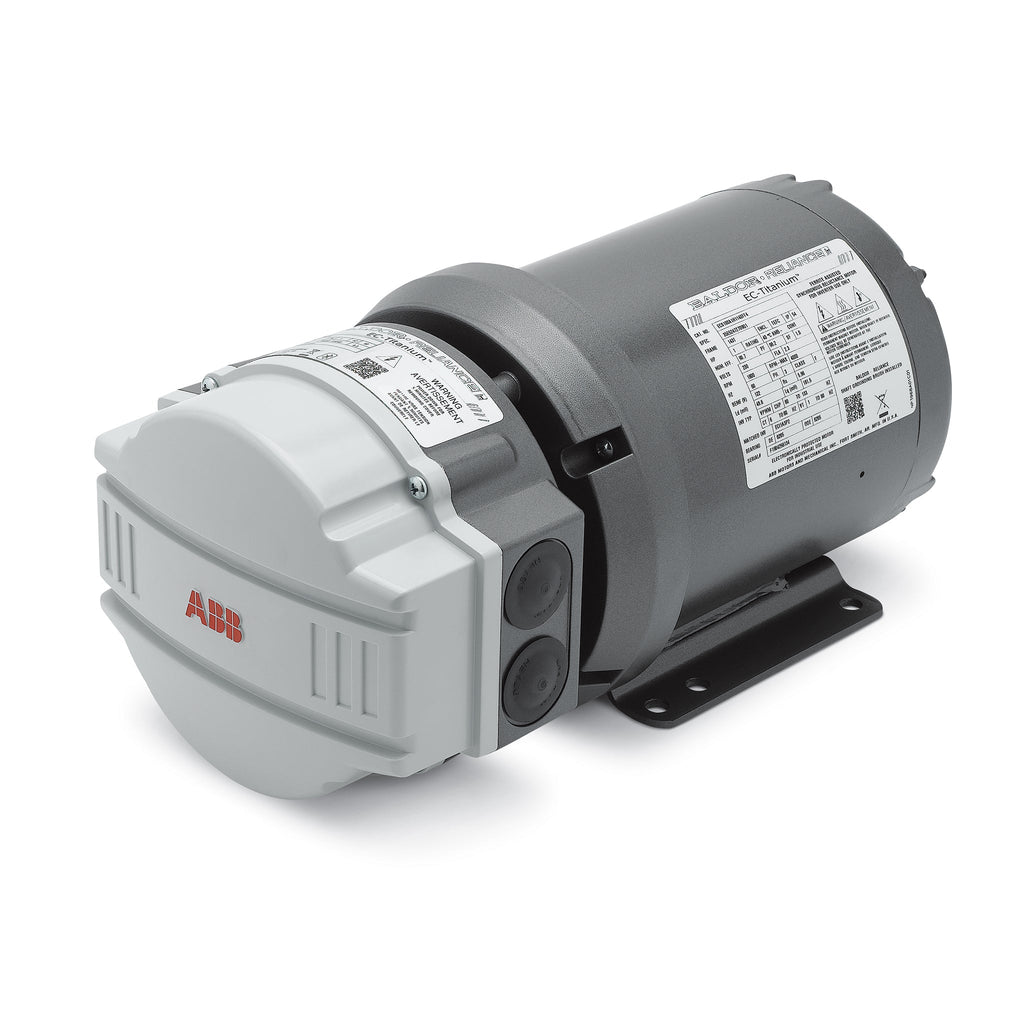

Baldor-Reliance EC Titanium Motors - ECS100A4H2DF4

Introducing the Baldor-Reliance EC Titanium Motor, a high-performance solution designed for demanding applications. This 2 HP motor operates at 1800 RPM and is engineered for three-phase power at 60Hz, making it ideal for various industrial uses.

  • Power: 2 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 145T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: ECS100A4H2DF4

This motor is built to last, featuring robust construction and efficient performance, making it a reliable choice for your operational needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

For assistance, please check your current pump for the exact part number or SKU that matches this product. If you have any questions or need help finding the right item, feel free to call us at (781) 281-8905.

UPC 781568950883
Supplier Part Number ECS100A4H2DF4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 38.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100A4H2DF4
Constant Torque Speed Range 6
Current @ Voltage 2.200 A @ 460.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.9 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145T
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.2 a
Insulation Class F
Inverter Code 3
IP Rating NONE
KVA Code -
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 3 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3524B
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 16.71 IN
Phase 3
Power Factor 93
Pulley Face Code Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
