Baldor ECS100A2H3EF4 - 3 HP, 1800RPM, 3 Phase, 60HZ, 182T, TEFC, Axial 60HZ Three Phase 3 HP

Save $843.00
BaldorSKU: ECS100A2H3EF4

Price:
Sale price$2,529.00 Regular price$3,372.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

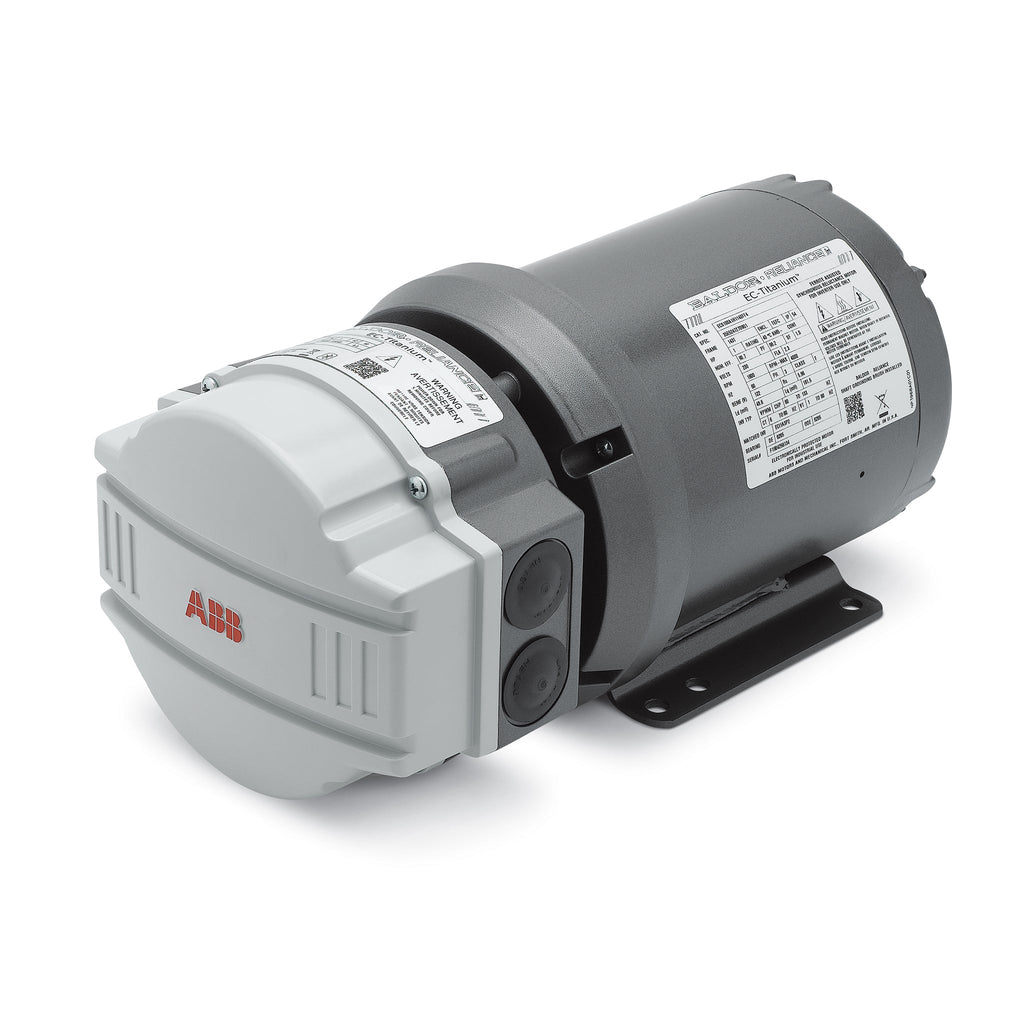

Baldor-Reliance EC Titanium Motors - ECS100A2H3EF4

Introducing the Baldor-Reliance EC Titanium Motor, a high-performance solution designed for demanding applications. This 3 HP motor operates at 1800 RPM and is engineered for 3-phase power at 60Hz, making it ideal for various industrial uses.

  • Power: 3 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 182T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Design: Axial

This motor is built for durability and efficiency, making it a reliable choice for your operational needs. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor ECS100A2H3EF4. If you encounter any difficulties in locating the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568950852
Supplier Part Number ECS100A2H3EF4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Approximate Weight (lbs) 66.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100A2H3EF4
Constant Torque Speed Range 6
Design Code B
Drip Cover No Drip Cover
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182T
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 3 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3624B
Mounting Arrangement F1
Number of Poles 4
Overall Length 16.60 IN
Phase 3
Pulley Face Code Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Shaft Diameter 1.125 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed Code Single Speed
Starting Method INVERTER SPECIAL
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
