Baldor ECP83768T-5 - 5 HP, 1160RPM, 3 Phase, 60HZ, 215T, 0748M, TEFC, F1 60HZ Three Phase 5 HP 0748 M Cable

Save $870.50
BaldorSKU: ECP83768T-5

Price:
Sale price$2,611.50 Regular price$3,482.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

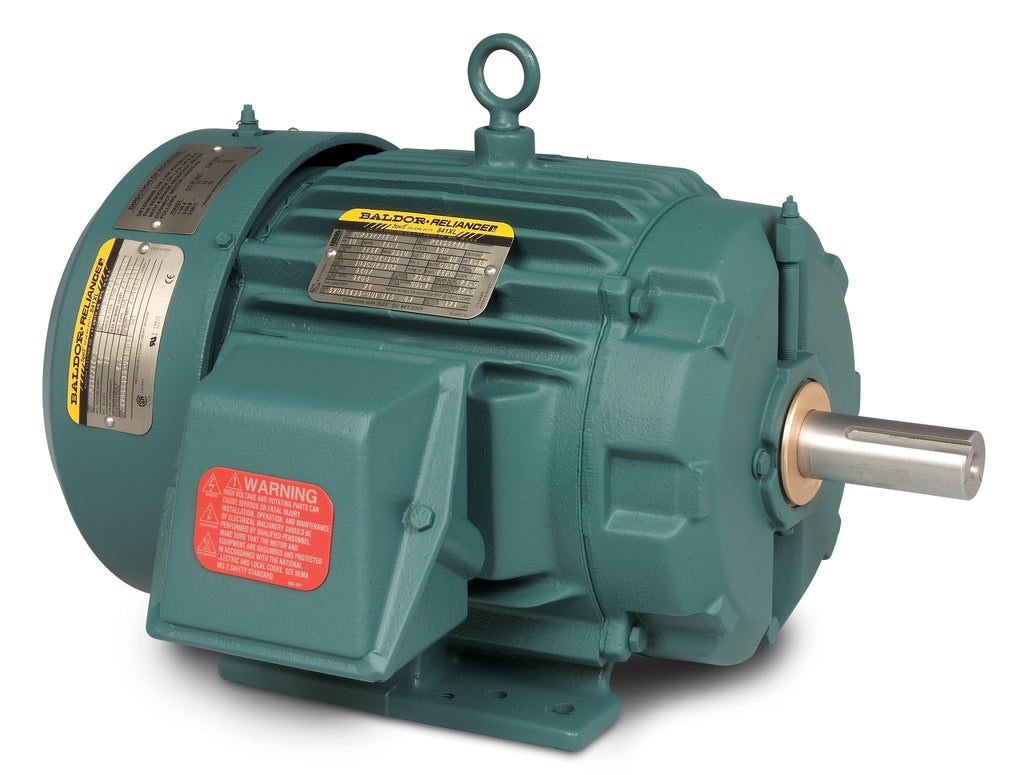

Baldor ECP83768T-5 - 5 HP IEEE 841XL Motor

Upgrade your pumping system with the Baldor ECP83768T-5, a high-performance 5 HP motor designed for reliability and efficiency. Operating at 1160 RPM, this 3-phase motor is engineered to meet the rigorous demands of industrial applications. With a 60Hz frequency and a 215T frame size, it is perfect for a variety of pump systems.

This motor features a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and protection against environmental factors. The IEEE 841XL certification guarantees superior performance and longevity, making it an ideal choice for those seeking dependable power solutions.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECP83768T-5 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Specifications:

  • Power: 5 HP
  • Speed: 1160 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 215T
  • Model: 0748M
  • Type: TEFC
  • Product Code: ECP83768T-5

Choose the Baldor ECP83768T-5 motor for your pumping needs and experience unmatched performance and reliability.

UPC 781568464052
Supplier Part Number ECP83768T-5
Category AC Motors
Subcategory IEEE 841XL Motors
Product Family Chem Process S/P 32-8 IEEE 841
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 226.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECP83768T-5
Constant Torque Speed Range 2
Current @ Voltage 5.700 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 5.7 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0748M
Mounting Arrangement F1
Number of Poles 6
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 19.50 IN
Phase 3
Power Factor 73
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1160 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
