Baldor ECP83764T-5 - 3 HP, 1165RPM, 3 Phase, 60HZ, 213T, 0736M, TEFC, F1 60HZ Three Phase 3 HP 0736 M Cable

Save $842.00
BaldorSKU: ECP83764T-5

Price:
Sale price$2,526.00 Regular price$3,368.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

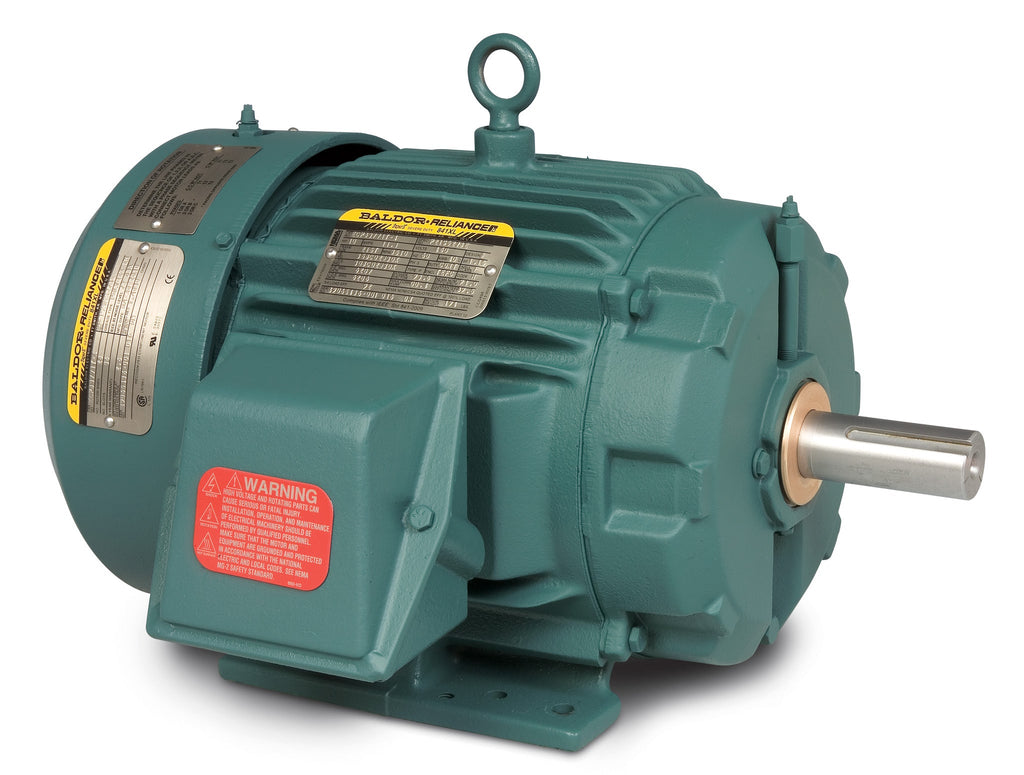

Baldor ECP83764T-5 - 3 HP IEEE 841XL Motor

Upgrade your pumping system with the Baldor ECP83764T-5, a high-performance 3 HP motor designed for reliability and efficiency. Operating at 1165 RPM, this 3-phase motor is engineered to meet the rigorous demands of industrial applications. With a 60Hz frequency and a TEFC (Totally Enclosed Fan Cooled) design, it ensures optimal performance while protecting against dust and moisture.

Specifications:

  • Power: 3 HP
  • Speed: 1165 RPM
  • Phase: 3 PH
  • Frequency: 60HZ
  • Frame Size: 213T
  • Product Code: ECP83764T-5
  • Type: IEEE 841XL Motor

As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right motor for your needs. If you have questions or need assistance, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is ready to assist you.

UPC 781568464045
Supplier Part Number ECP83764T-5
Category AC Motors
Subcategory IEEE 841XL Motors
Product Family Chem Process S/P 32-8 IEEE 841
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 211.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECP83764T-5
Constant Torque Speed Range 1.8
Current @ Voltage 3.600 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 3.6 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0736M
Mounting Arrangement F1
Number of Poles 6
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 19.50 IN
Phase 3
Power Factor 70
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1165 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
