Baldor ECP4100T-5 - 46M 6P TEFC Hor 284T 32-6 Se 46 M Cable

Save $1,672.75
BaldorSKU: ECP4100T-5

Price:
Sale price$5,018.25 Regular price$6,691.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

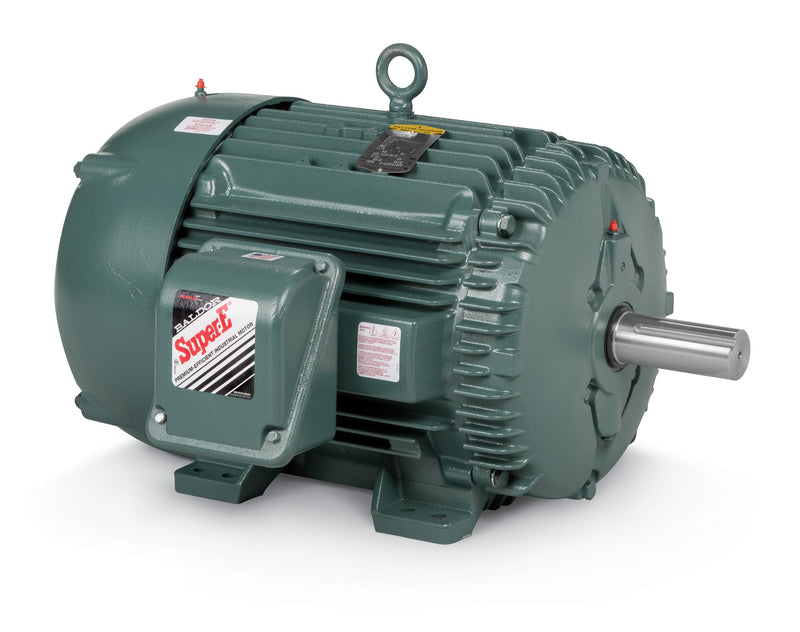

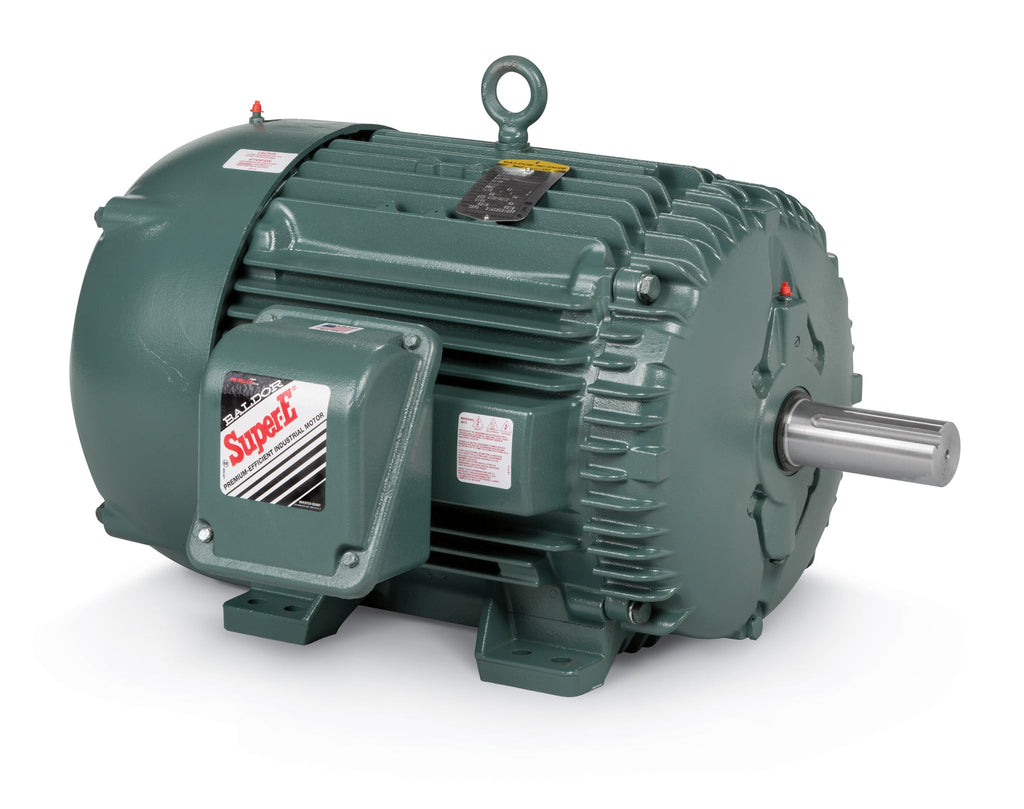

Baldor ECP4100T-5 - 46M 6P TEFC Hor 284T 32-6 Se Motor

Introducing the Baldor ECP4100T-5, a high-performance Severe Duty XEX Motor designed for demanding applications. This robust motor features a 46M frame size, 6 poles, and a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and reliability in harsh environments. With a horsepower rating of 284T and a service factor of 32-6, this motor is engineered to deliver exceptional performance and efficiency.

As a trusted vendor, Baldor provides top-quality motors that meet the rigorous standards of industrial applications. The ECP4100T-5 is ideal for use in various settings, including pumps, compressors, and other heavy-duty machinery.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECP4100T-5 to ensure compatibility. If you encounter any difficulties, our knowledgeable team is here to help you find the perfect solution.

Explore our extensive range of Baldor-Reliance Motors & Drives, including the Severe Duty XEX Motors, and experience the quality and performance that professionals trust.

UPC 781568136737
Supplier Part Number ECP4100T-5
Category AC Motors
Subcategory Severe Duty XEX Motors
Product Family Super-E Chemical Processing
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 436.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECP4100T-5
Constant Torque Speed Range 1
Current @ Voltage 17.100 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Frame 284T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 17.1 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1046M
Mounting Arrangement F1
Number of Poles 6
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 28.00 IN
Phase 3
Power Factor 72
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
