Baldor EBM4104T - 30 HP, 1760RPM, 3 Phase, 60HZ, 284T, 1056M, TEFC, F1 60HZ Three Phase 30 HP 1056 M Cable

Save $5,181.75
BaldorSKU: EBM4104T

Price:
Sale price$15,545.25 Regular price$20,727.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

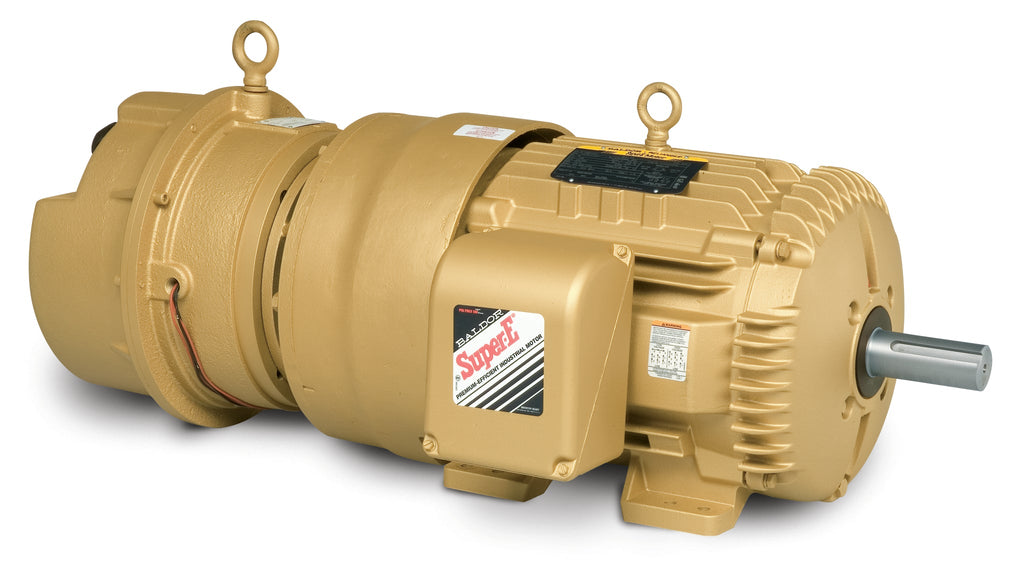

Baldor EBM4104T - 30 HP Short-Series Brake Motor

Discover the power and reliability of the Baldor EBM4104T, a high-performance 30 HP Short-Series Brake Motor designed for demanding applications. Operating at 1760 RPM and compatible with 3-phase, 60Hz systems, this motor is engineered to deliver exceptional performance and efficiency.

Key Features:

  • Power: 30 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 284T
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1
  • Product Code: EBM4104T

This Baldor-Reliance motor is ideal for various industrial applications, providing robust performance and durability. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EBM4104T. Our team is here to help you with any inquiries or challenges you may face in selecting the perfect motor.

UPC 781568393192
Supplier Part Number EBM4104T
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 667.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 125.0 lb-ft
Catalog Number EBM4104T
Current @ Voltage 38.000 A @ 460.0 V, 76.000 A @ 230.0 V, 78.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 284T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 38.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1056M
Mounting Arrangement F1
Number of Poles 4
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 41.72 IN
Phase 3
Power Factor 80
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
