Baldor EBM4103T - 25 HP, 1775RPM, 3 Phase, 60HZ, 284T, 1054M, TEFC, F1 60HZ Three Phase 25 HP 1054 M Cable

Save $4,595.00
BaldorSKU: EBM4103T

Price:
Sale price$13,785.00 Regular price$18,380.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

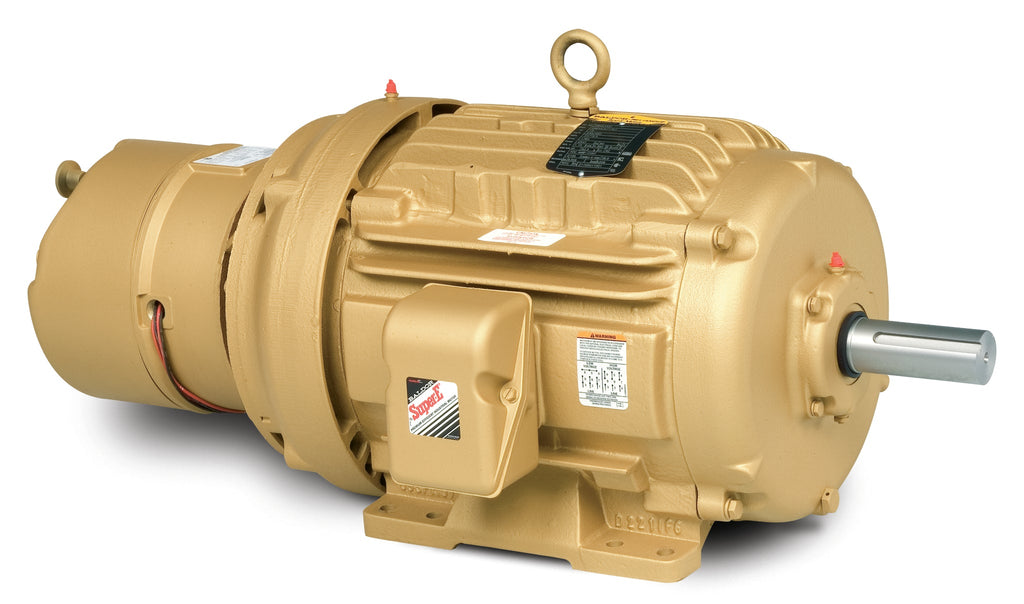

Baldor EBM4103T - 25 HP Short-Series Brake Motor

Discover the power and reliability of the Baldor EBM4103T, a high-performance 25 HP Short-Series Brake Motor designed for demanding applications. Operating at 1775 RPM with a 3 Phase configuration, this motor is optimized for 60HZ environments, making it an ideal choice for various industrial settings.

Key specifications include:

  • Power: 25 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 284T
  • Insulation Class: 1054M
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: EBM4103T

This motor is built to withstand harsh conditions while delivering consistent performance. Whether you need it for pump applications or other industrial uses, the Baldor EBM4103T is engineered to meet your needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EBM4103T. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568393208
Supplier Part Number EBM4103T
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 516.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 105.0 lb-ft
Catalog Number EBM4103T
Current @ Voltage 62.000 A @ 230.0 V, 64.000 A @ 208.0 V, 31.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 284T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 31.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1054M
Mounting Arrangement F1
Number of Poles 4
Output 25.000 hp
Output @ Frequency 25.000 HP @ 60 HZ
Overall Length 39.66 IN
Phase 3
Power Factor 81
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
