Baldor EBM3558T - 2 HP, 1760RPM, 3 Phase, 60HZ, 145T, 3528M, TEFC, F1 60HZ Three Phase 2 HP 3528 M Cable

Save $781.75
BaldorSKU: EBM3558T

Price:
Sale price$2,345.25 Regular price$3,127.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

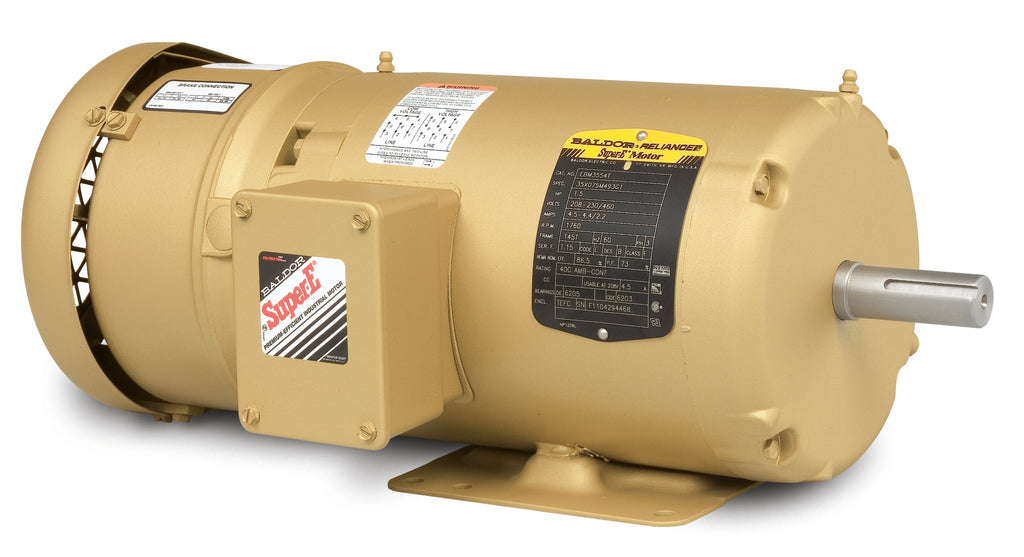

Baldor EBM3558T - 2 HP Short-Series Brake Motor

Discover the reliability and performance of the Baldor EBM3558T, a powerful 2 HP, 1760 RPM, 3-phase motor designed for demanding applications. This motor operates at 60Hz and features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and efficiency in various environments. With a frame size of 145T and a 3528M cable configuration, this motor is ideal for those seeking a robust solution for their pumping needs.

As a trusted vendor, Baldor provides high-quality motors that meet industry standards, making the EBM3558T a reliable choice for your operations. Whether you're looking to replace an existing motor or upgrade your system, this short-series brake motor is engineered to deliver exceptional performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EBM3558T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568392287
Supplier Part Number EBM3558T
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 57.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 10.0 lb-ft
Catalog Number EBM3558T
Current @ Voltage 5.600 A @ 230.0 V, 5.800 A @ 208.0 V, 2.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.8 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3528M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 15.40 IN
Phase 3
Power Factor 77
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.188 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
