Baldor EBM3313T - 10 HP, 1770RPM, 3 Phase, 60HZ, 215T, 3742M, Open, F1 60HZ Three Phase 10 HP 3742 M Cable

Save $1,720.75
BaldorSKU: EBM3313T

Price:
Sale price$5,162.25 Regular price$6,883.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

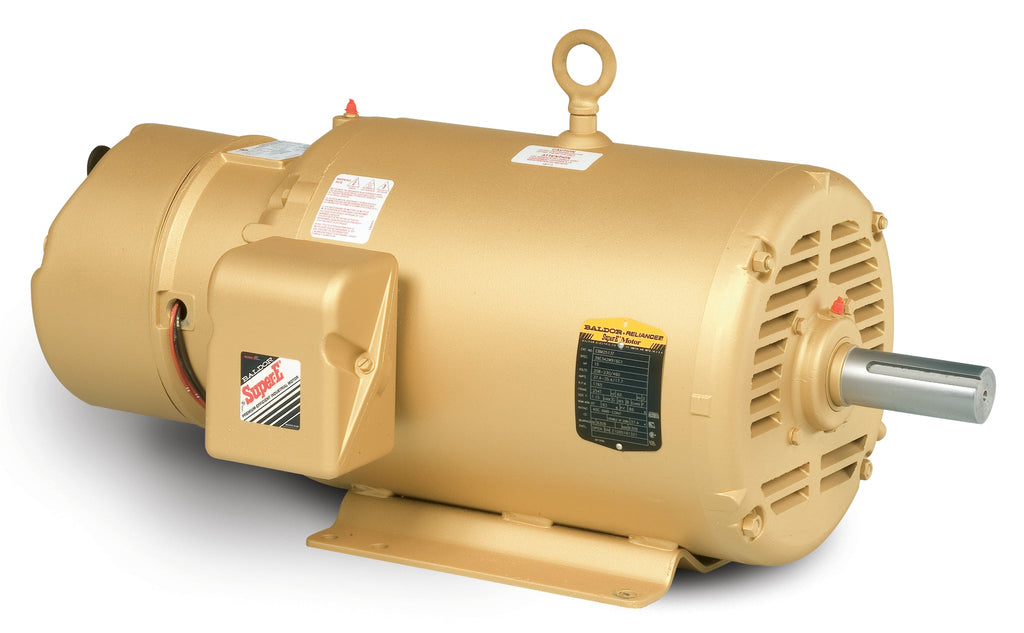

Baldor EBM3313T - 10 HP Short-Series Brake Motor

Discover the power and reliability of the Baldor EBM3313T, a high-performance 10 HP Short-Series Brake Motor designed for demanding applications. Operating at 1770 RPM and compatible with 3-phase, 60Hz systems, this motor is engineered to deliver exceptional performance and efficiency.

Specifications:

  • Power: 10 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 215T
  • Enclosure: Open
  • Product Code: EBM3313T

This Baldor-Reliance motor is ideal for various industrial applications, providing the durability and reliability you need for your operations. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EBM3313T to ensure compatibility. Our team is here to help you with any inquiries or challenges you may face in selecting the right item.

UPC 781568524534
Supplier Part Number EBM3313T
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 159.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 50.0 lb-ft
Catalog Number EBM3313T
Current @ Voltage 12.500 A @ 460.0 V, 25.000 A @ 230.0 V, 26.000 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3742M
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 26.08 IN
Phase 3
Power Factor 82
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
