Baldor D5520R - 20 1750/2300 LC2512ATZ TEFC 500V

Save $13,282.40
BaldorSKU: D5520R

Price:
Sale price$19,923.60 Regular price$33,206.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

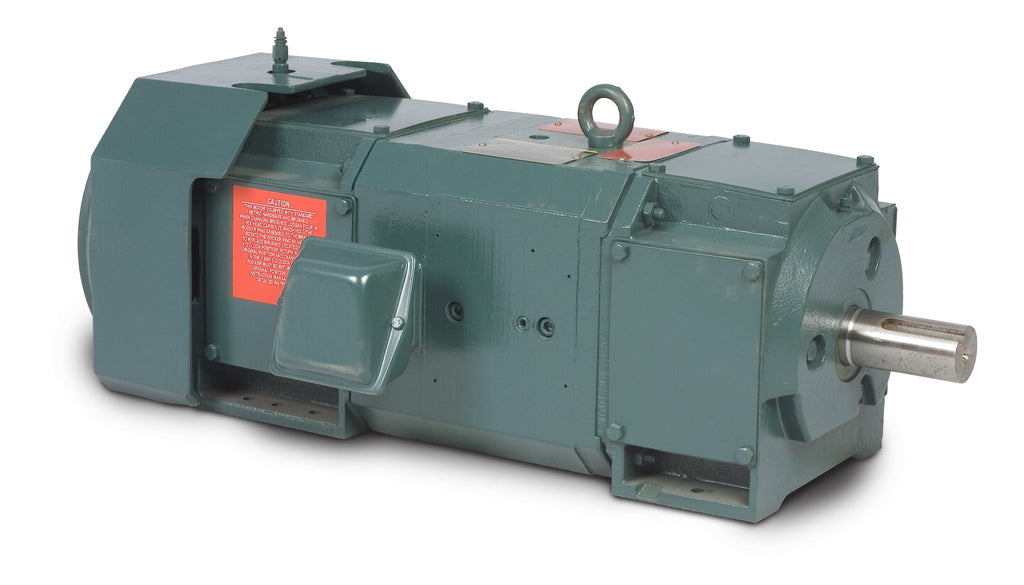

Baldor-Reliance RPM III Motors - Model D5520R

Introducing the Baldor D5520R, a high-performance RPM III motor designed for reliability and efficiency. This motor operates at dual voltages of 1750/2300 and is rated for 500V, making it an ideal choice for various industrial applications. The TEFC (Totally Enclosed Fan Cooled) design ensures optimal protection against dust and moisture, enhancing the longevity and performance of the motor.

Key Features:

  • Model: D5520R
  • Type: RPM III Motor
  • Voltage: 500V
  • Speed: 1750/2300 RPM
  • TEFC design for superior protection

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the D5520R to ensure compatibility. Our team is here to help you find the perfect solution for your needs.

UPC 781568463376
Supplier Part Number D5520R
Category DC Motors
Subcategory RPM III Motors
Agency Approvals CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 640.0
Armature Current 33.0 a
Armature Voltage 500 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device CUST SUPPLIED
Field Voltage 300 V
Field Winding Type STAB SHUNT
Frame LC2512ATZ
Frame Material Exposed Laminations
Frame Prefix LC
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Standards NEMA
Mounting Arrangement F1
Output Power 20 hp
Overall Length 38.94 IN
Service Factor 1
Shaft Diameter 2.124 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Slinger Indicator No Slinger
Thermal Device - Bearing None

Motor Curves
