Baldor D2305 - 1.5 HP, 1750RPM, DC, 184, 3636D, TEFC, F1 1.5 HP

Save $2,660.40
BaldorSKU: D2305

Price:
Sale price$3,990.60 Regular price$6,651.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

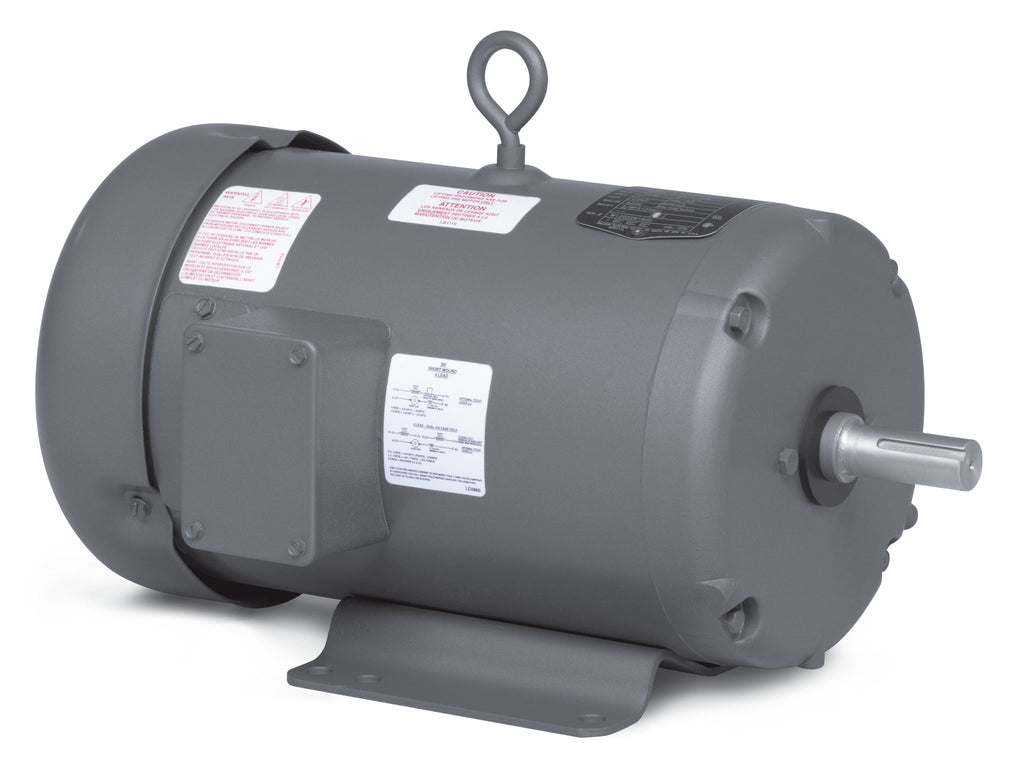

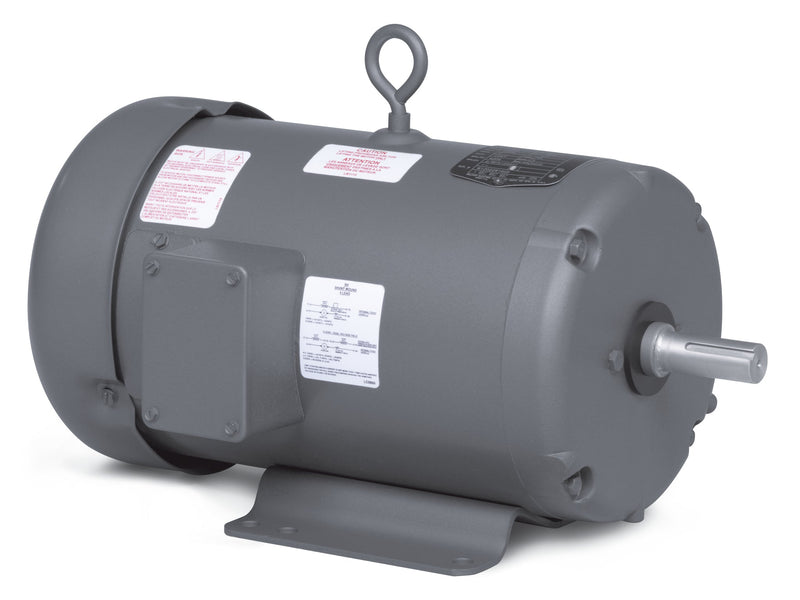

Baldor D2305 - 1.5 HP DC Motor

Upgrade your pumping system with the Baldor D2305, a high-performance 1.5 HP DC motor designed for reliability and efficiency. Operating at 1750 RPM, this motor is perfect for a variety of applications requiring fractional horsepower. With a TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and protection against dust and moisture, making it ideal for both indoor and outdoor use.

Key Features:

  • Power: 1.5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 184
  • Model: 3636D
  • Enclosure: TEFC
  • Mounting: F1

As a trusted vendor, Baldor provides exceptional quality and performance in their fractional HP motors, making the D2305 a reliable choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor D2305. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568124666
Supplier Part Number D2305
Category DC Motors
Subcategory Fractional HP Motors
Product Family WP Below Decks Marine Duty
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 82.0
Armature Current 5.8 a
Armature Inertia 30.342 lb-ft2
Armature Voltage 230 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 230 V
Field Winding Type COMPOUND
Frame 184
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG, 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1.5 hp
Overall Length 16.79 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
