Baldor D2303 - .75 HP, 1750RPM, DC, 56, 3428D, TEFC, F1, N 75 HP

Save $1,360.80
BaldorSKU: D2303

Price:
Sale price$2,041.20 Regular price$3,402.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

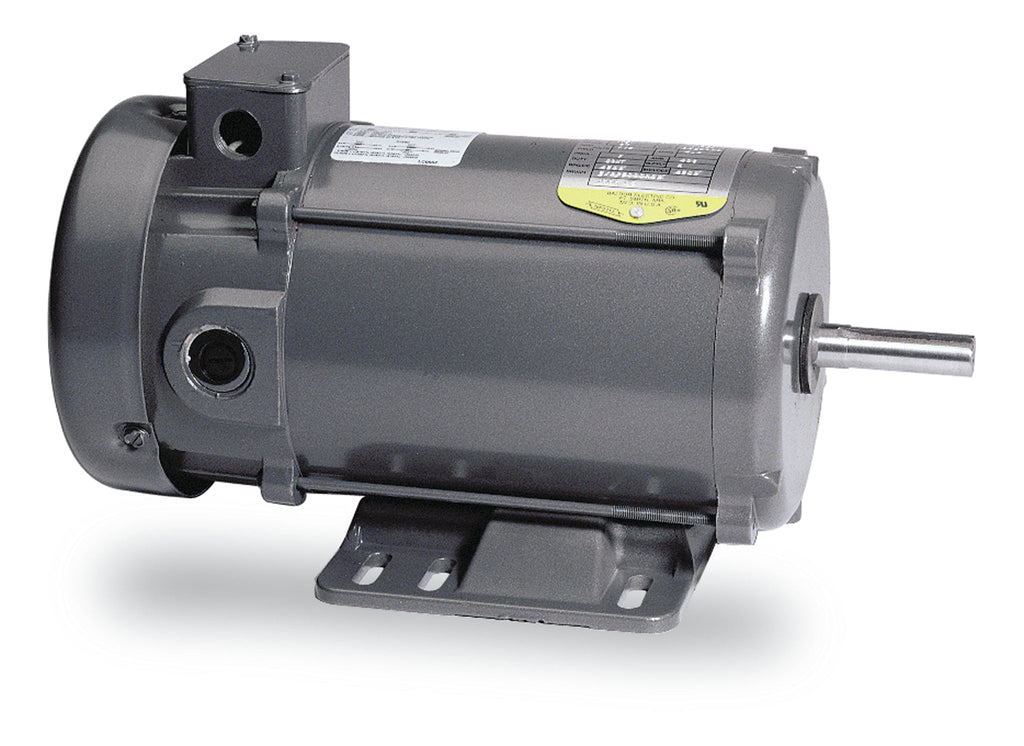

Baldor D2303 - .75 HP DC Motor

Upgrade your equipment with the Baldor D2303, a reliable .75 HP, 1750 RPM DC motor designed for optimal performance in various applications. This fractional horsepower motor features a robust TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and protection against environmental factors.

Specifications:

  • Power: .75 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56
  • Model: 3428D
  • Mounting: F1
  • SKU: D2303

As a trusted vendor, Baldor provides high-quality motors that are perfect for a variety of applications, including pump systems. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568124642
Supplier Part Number D2303
Category DC Motors
Subcategory Fractional HP Motors
Product Family WP Below Decks Marine Duty
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 34.0
Armature Current 3.3 a
Armature Inertia 6.552 lb-ft2
Armature Voltage 230 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame 56
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG, 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.75 hp
Overall Length 14.04 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
