Baldor D2302 - .5 HP, 1750RPM, DC, 56, 3420D, TEFC, F1, N 5 HP

Save $1,156.00
BaldorSKU: D2302

Price:
Sale price$1,734.00 Regular price$2,890.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

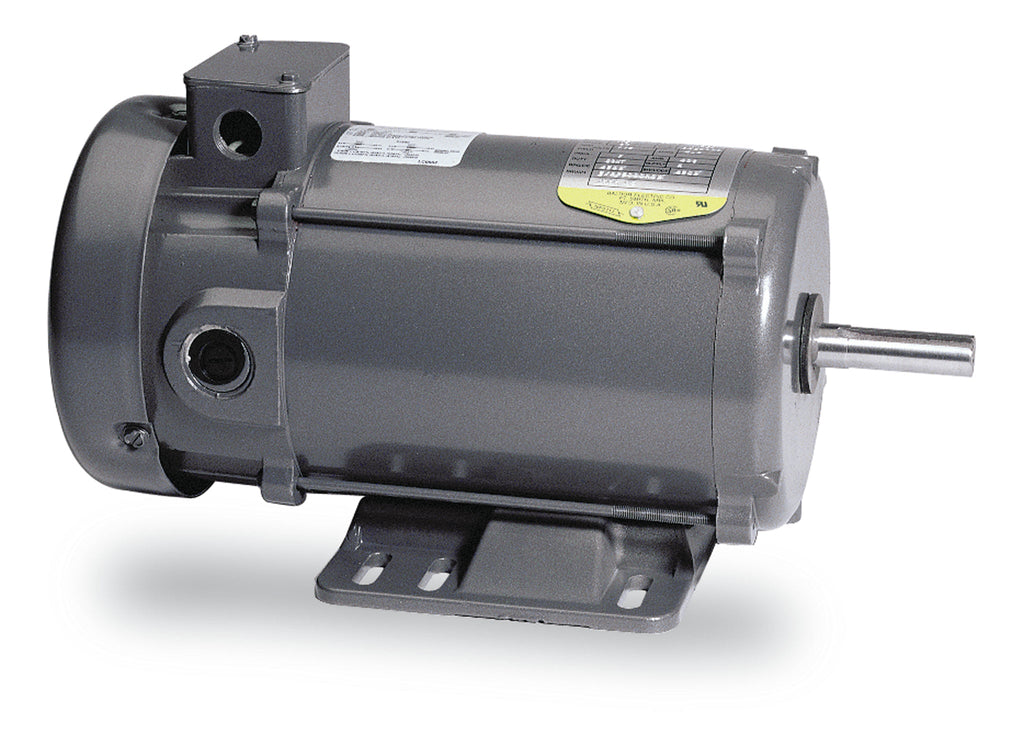

Baldor D2302 - .5 HP DC Motor

Discover the reliability and performance of the Baldor D2302, a fractional horsepower motor designed for various applications. With a power rating of .5 HP and a speed of 1750 RPM, this DC motor is perfect for those seeking efficiency and durability.

Key specifications include:

  • Type: DC Motor
  • Power: .5 HP
  • Speed: 1750 RPM
  • Frame Size: 56
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: D2302

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it an ideal choice for your pump applications.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor D2302. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568124635
Supplier Part Number D2302
Category DC Motors
Subcategory Fractional HP Motors
Product Family WP Below Decks Marine Duty
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 29.0
Armature Current 2.1 a
Armature Inertia 4.680 lb-ft2
Armature Voltage 230 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 230 V
Field Winding Type COMPOUND
Frame 56
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG, 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.5 hp
Overall Length 13.54 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger

Motor Curves
