Baldor D1154 - 1 HP, 1750RPM, DC, 56, 3535D, TEFC, F1 1 HP

Save $1,564.40
BaldorSKU: D1154

Price:
Sale price$2,346.60 Regular price$3,911.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

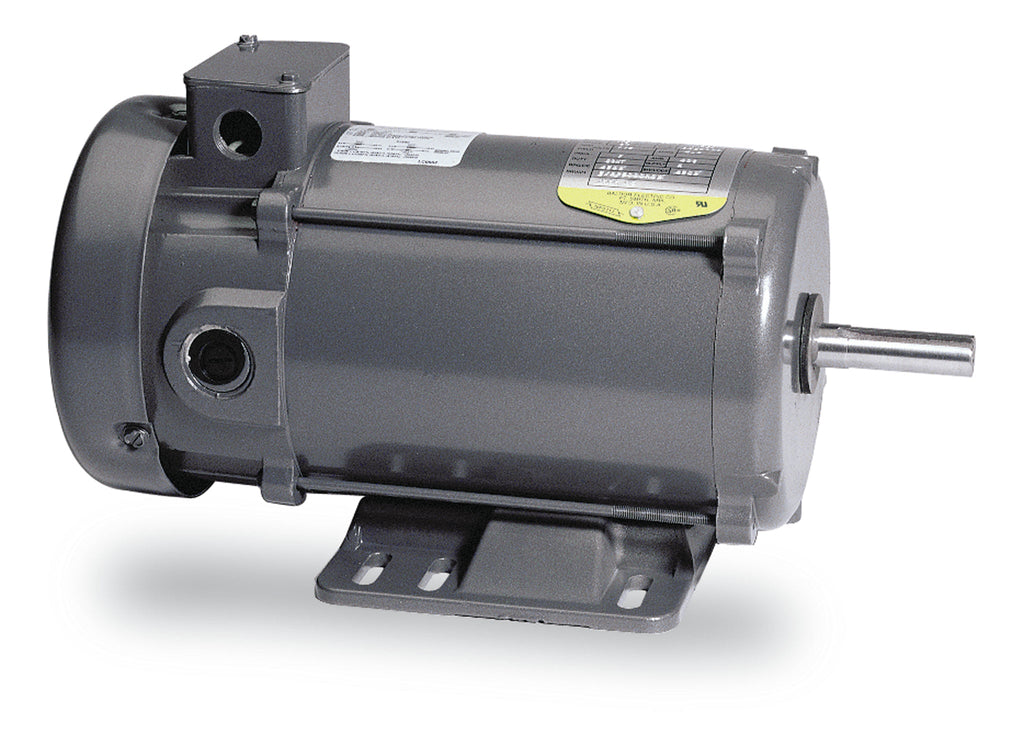

Baldor D1154 - 1 HP DC Motor

Upgrade your pumping system with the Baldor D1154, a reliable 1 HP, 1750 RPM DC motor designed for optimal performance in various applications. This fractional horsepower motor features a robust TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and efficiency in demanding environments.

Key Features:

  • Power: 1 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56
  • Model: 3535D
  • Enclosure: TEFC
  • Product Code: D1154

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568124611
Supplier Part Number D1154
Category DC Motors
Subcategory Fractional HP Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 60.0
Armature Current 8.0 a
Armature Inertia 13.657 lb-ft2
Armature Voltage 115 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 115 V
Field Winding Type COMPOUND
Frame 56
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG, F, 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1 hp
Overall Length 15.44 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
