Baldor D1152 - .5 HP, 1750RPM, DC, 56, 3420D, TEFC, F1 5 HP

Save $1,156.00
BaldorSKU: D1152

Price:
Sale price$1,734.00 Regular price$2,890.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

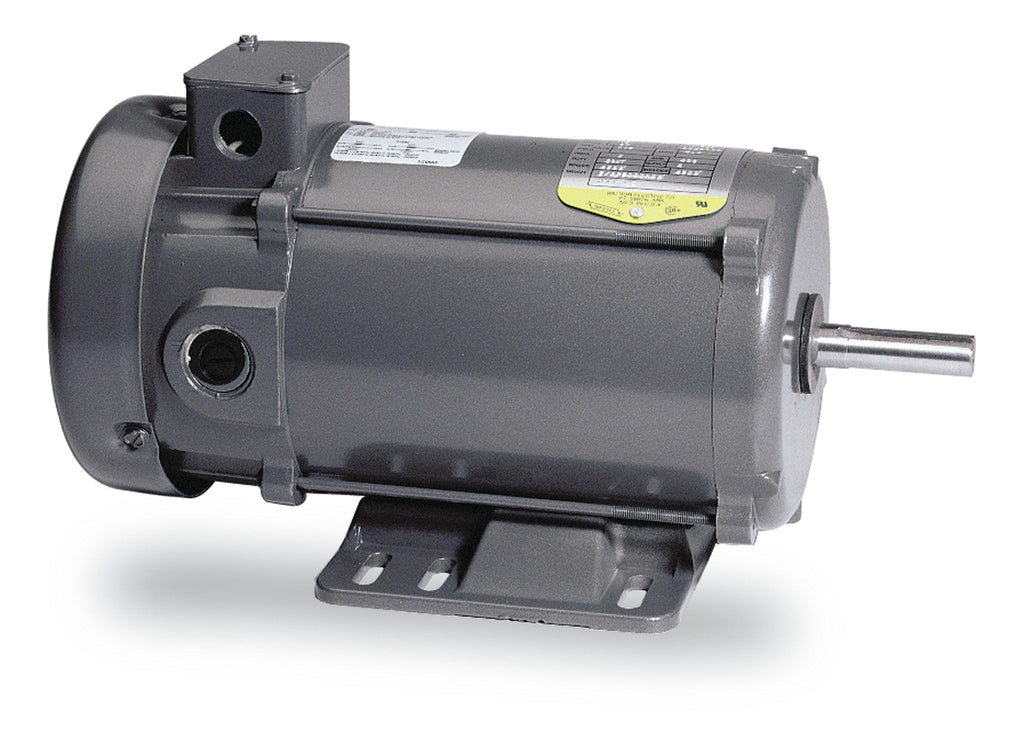

Baldor D1152 - .5 HP DC Motor

Upgrade your equipment with the Baldor D1152, a reliable .5 HP, 1750 RPM DC motor designed for optimal performance in various applications. This fractional horsepower motor features a robust TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and efficiency in demanding environments.

Key Specifications:

  • Power: .5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56
  • Model: 3420D
  • Enclosure: TEFC
  • Product Code: D1152

As a trusted vendor, Baldor is known for its high-quality motors and drives, making the D1152 an excellent choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568124598
Supplier Part Number D1152
Category DC Motors
Subcategory Fractional HP Motors
Product Family WP Below Decks Marine Duty
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 27.0
Armature Current 4.6 a
Armature Inertia 4.680 lb-ft2
Armature Voltage 115 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 115 V
Field Winding Type COMPOUND
Frame 56
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG, 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.5 hp
Overall Length 13.54 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger

Motor Curves
