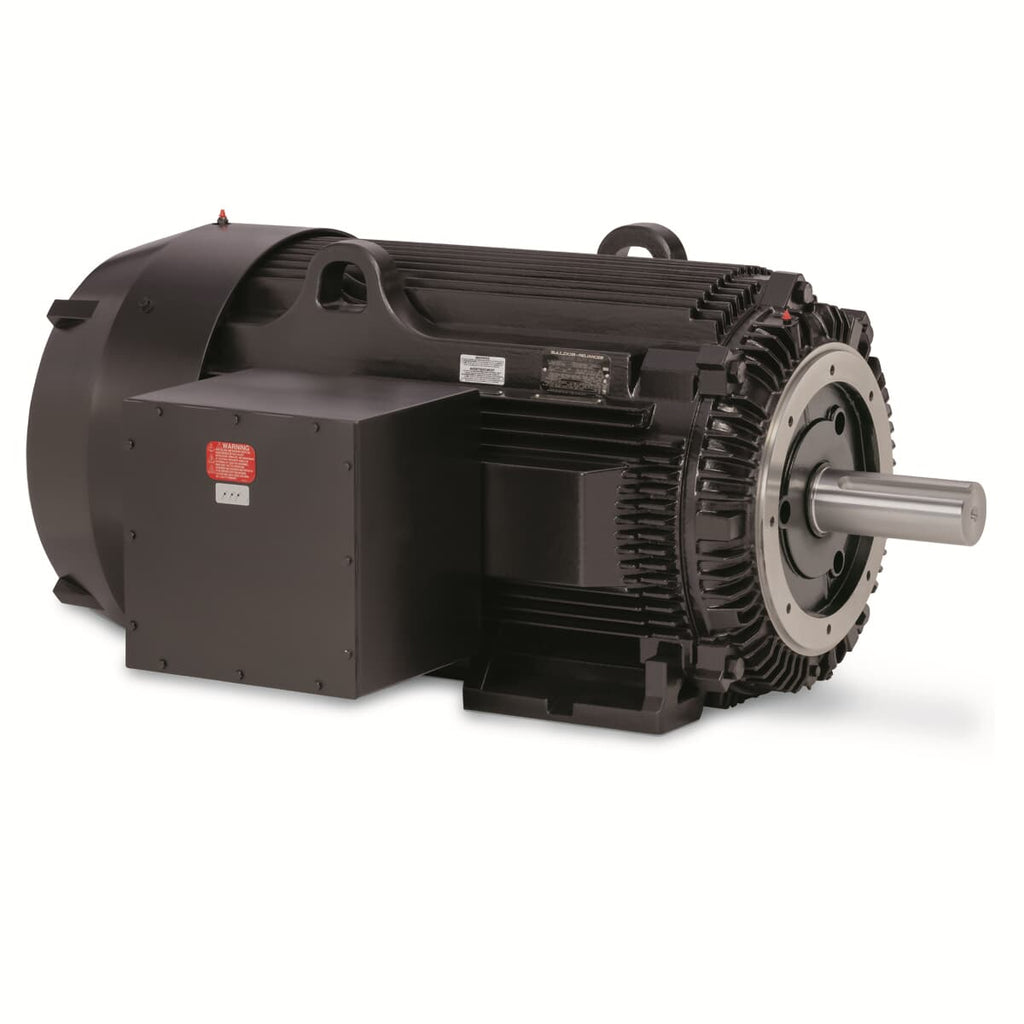

Baldor CXT33004T-5 - 300 HP, 1785RPM, 3 Phase, 60HZ, 449TC, A44160M, Tef 60HZ Three Phase 300 HP

Save $27,336.80
BaldorSKU: CXT33004T-5

Price:
Sale price$41,005.20 Regular price$68,342.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Component

The Baldor CXT33004T-5 for Baldor pump systems.

Part Specifications
Part Number CXT33004T-5
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
UPC 781568983669
Supplier Part Number CXT33004T-5
Category AC Motors
Subcategory Severe Duty XT Motors
Product Family General Industrial
Agency Approvals NEMA_PREMIUM, CURUSEEV, CCSAUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 3027.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number CXT33004T-5
Current @ Voltage 267.000 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 96.2 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 449TC
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Division II
Heater Indicator No Heater
High Voltage Full Load Amps 267.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 6 @ 1/0 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44160M
Mounting Arrangement F1
Number of Poles 4
Output 300.000 hp
Output @ Frequency 300.000 HP @ 60 HZ
Overall Length 53.47 IN
Phase 3
Power Factor 88
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1785 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
