Baldor CXT31004T-5 - 100 HP, 1780RPM, 3 Phase, 60HZ, 405TC, A40072M, Tef 60HZ Three Phase 100 HP

Save $10,337.20
BaldorSKU: CXT31004T-5

Price:
Sale price$15,505.80 Regular price$25,843.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Severe Duty XT Motors - CXT31004T-5

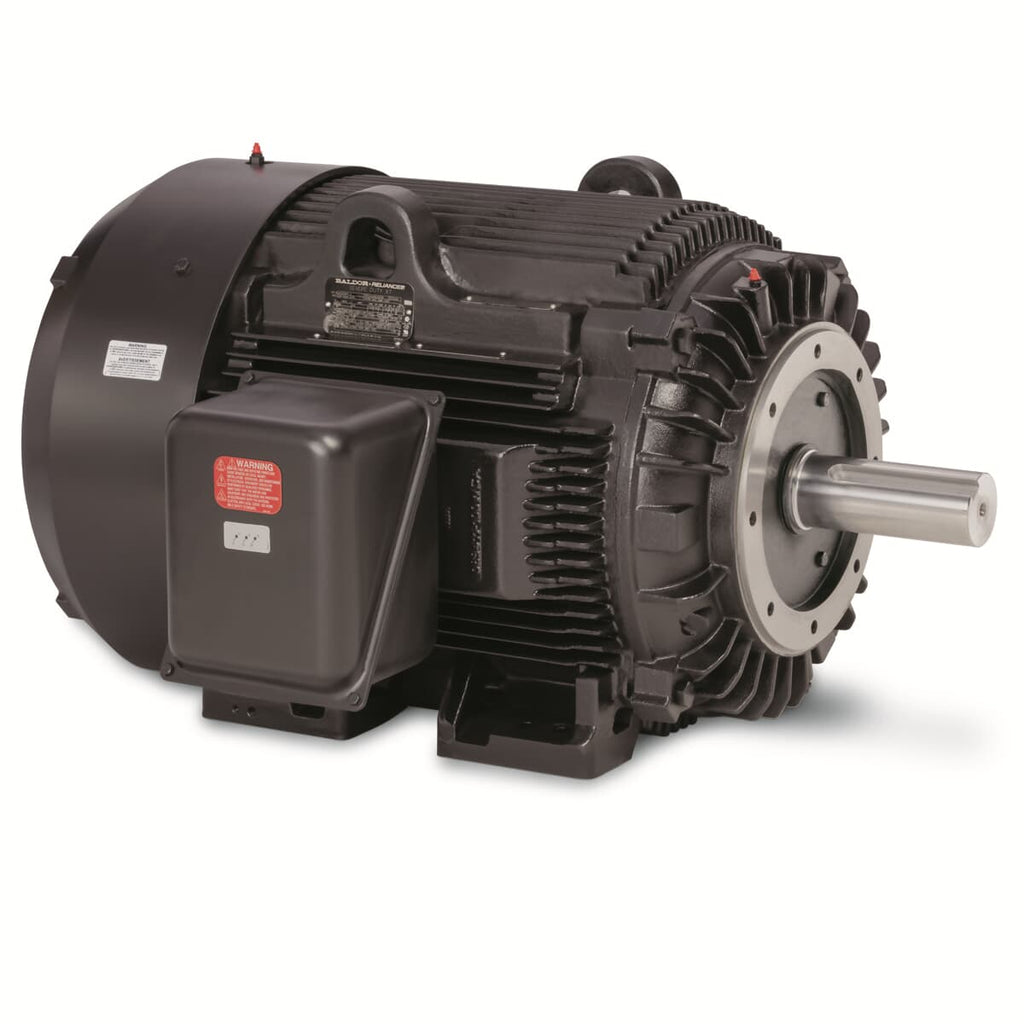

Introducing the Baldor CXT31004T-5, a high-performance 100 HP Severe Duty XT Motor designed for demanding industrial applications. With a robust 1780 RPM speed and a reliable 3 Phase power supply at 60HZ, this motor is engineered to deliver exceptional efficiency and durability.

Key specifications include:

  • Power: 100 HP
  • Speed: 1780 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 405TC
  • Product Code: A40072M
  • Type: TEF

As a trusted source for replacement pumps and parts, Pump-Stop.com is your go-to destination for high-quality Baldor motors. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568983577
Supplier Part Number CXT31004T-5
Category AC Motors
Subcategory Severe Duty XT Motors
Product Family General Industrial
Agency Approvals NEMA_PREMIUM, CURUSEEV, CCSAUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 1375.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number CXT31004T-5
Current @ Voltage 90.700 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.4 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 405TC
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Division Division II
Heater Indicator No Heater
High Voltage Full Load Amps 90.7 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 3 @ 2 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A40072M
Mounting Arrangement F1
Number of Poles 4
Output 100.000 hp
Output @ Frequency 100.000 HP @ 60 HZ
Overall Length 38.19 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1.15
Shaft Diameter 2.875 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1780 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ

Motor Curves
