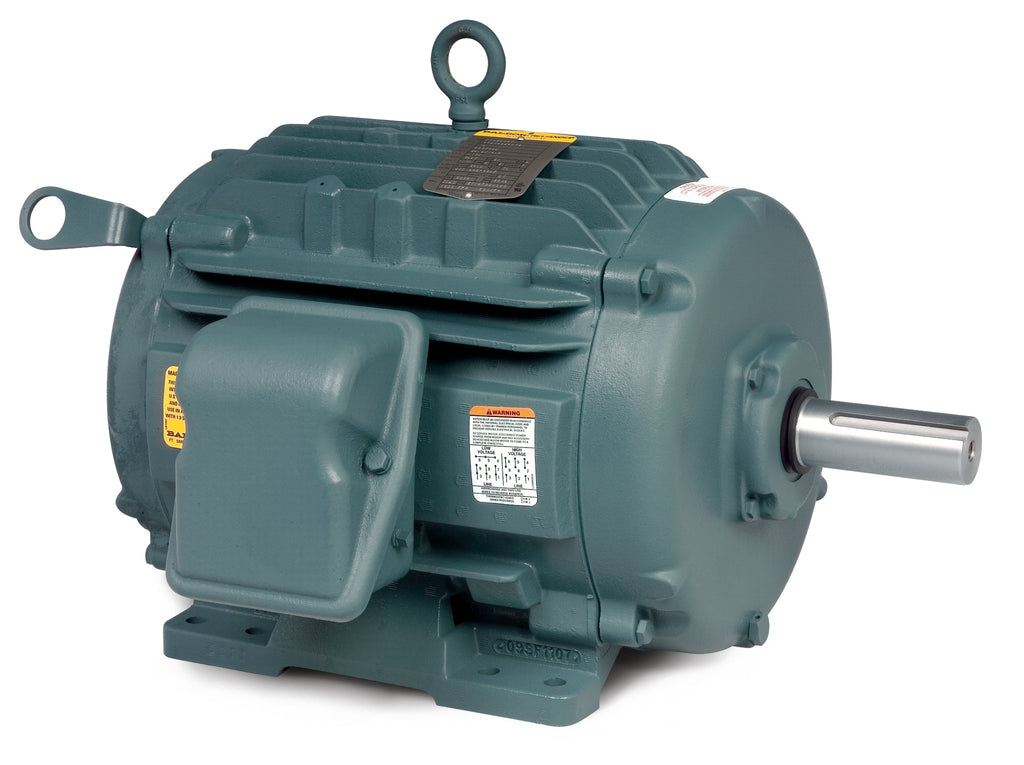

UPC
781568408193
Supplier Part Number
CTM2332T
Category
AC Motors
Subcategory
Chiller/Cooling Tower Motors
Product Family
Chemical Processing (Not DC)
Agency Approvals
CSA, CURUS, UR
Ambient Temperature
40 °C
Approximate Weight (lbs)
275.0
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
None
Catalog Number
CTM2332T
Current @ Voltage
37.000 A @ 208.0 V, 28.800 A @ 230.0 V, 14.400 A @ 460.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
89.5 %
Electrically Isolated Bearing
Not Electrically Isolated
Enclosure
TEAO
Feedback Device
NO FEEDBACK
Frame
256T
Frame Material
Cast Iron
Frequency
60.00 Hz
Front Face Code
Standard
Front Shaft Indicator
None
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
14.4 a
Insulation Class
F
Inverter Code
Not Inverter
IP Rating
NONE
KVA Code
H
Lifting Lugs
Vertical Lifting Lugs
Locked Bearing Indicator
Locked Bearing
Motor Lead Exit
Ko Box
Motor Lead Quantity/Wire Size
9 @ 12 AWG
Motor Lead Termination
Flying Leads
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
0946M
Mounting Arrangement
F1
Number of Poles
6
Output
10.000 hp
Output @ Frequency
10.000 HP @ 60 HZ
Overall Length
23.09 IN
Phase
3
Power Factor
73
Pulley End Bearing Type
Sealed Bearing
Pulley Face Code
Standard
Pulley Shaft Indicator
Standard
Rodent Screen
None
Service Factor
1.15
Shaft Diameter
1.625 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
Shaft Slinger
Speed
1175 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,200 rpm
Synchronous Speed @ Frequency
1200 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Vibration Sensor Indicator
No Vibration Sensor
Voltage
230 V, 460 V
Voltage @ Frequency
230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1
None
Winding Thermal 2
None
