Baldor CTM1767T - 60 HP, 1775RPM, 3 Phase, 60HZ, 364T, TEFC, Foot, 60HZ Three Phase 60 HP

Save $10,444.40
BaldorSKU: CTM1767T

Price:
Sale price$15,666.60 Regular price$26,111.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

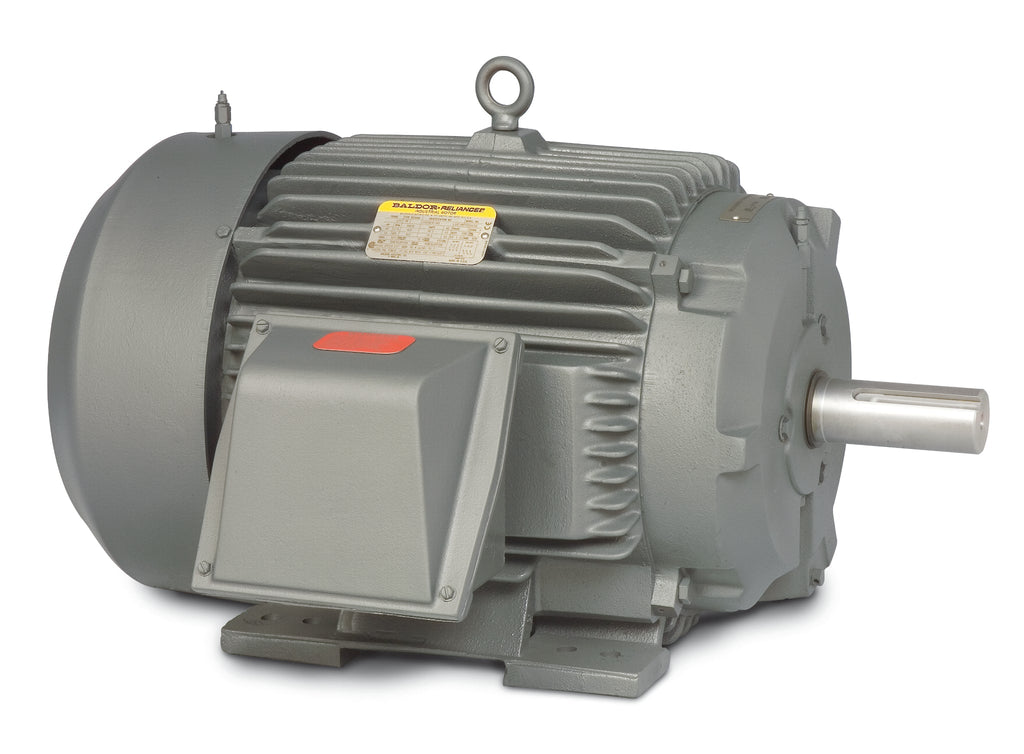

Baldor CTM1767T - 60 HP Chiller/Cooling Tower Motor

The Baldor CTM1767T is a high-performance chiller and cooling tower motor designed for reliable operation in demanding environments. With a robust 60 horsepower and a speed of 1775 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for various industrial applications.

Specifications:

  • Power: 60 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 364T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: Foot-mounted

This motor is part of the Baldor-Reliance line, known for its durability and efficiency in cooling applications. Whether you are replacing an existing motor or upgrading your system, the CTM1767T is engineered to meet your needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CTM1767T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568457528
Supplier Part Number CTM1767T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Agency Approvals CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 836.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number CTM1767T
Current @ Voltage 69.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 364T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 24.1 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36052M
Mounting Arrangement F1
Number of Poles 4, 8
Output 60.000 hp, 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ, 60.000 HP @ 60 HZ
Overall Length 33.44 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm, 885 rpm
Speed Code 2S-1W-VT
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
