Baldor CTM1762T - 20 HP, 1770RPM, 3 Phase, 60HZ, 256T, TEFC, Foot, 60HZ Three Phase 20 HP

Save $3,486.40
BaldorSKU: CTM1762T

Price:
Sale price$5,229.60 Regular price$8,716.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

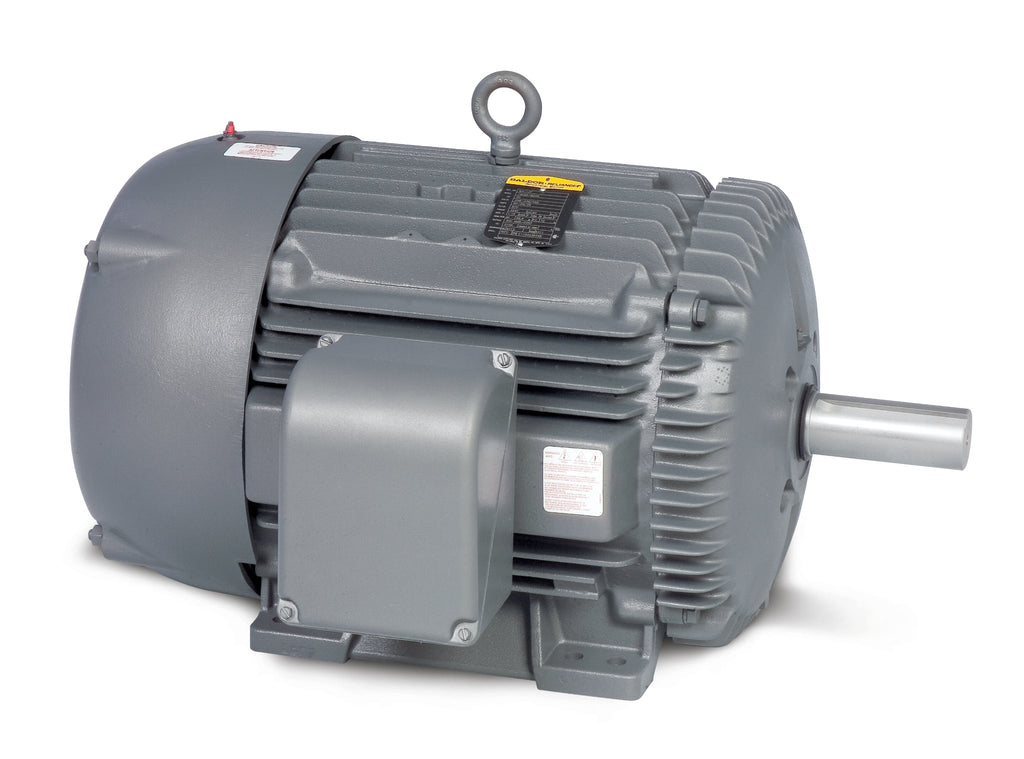

Baldor CTM1762T Chiller/Cooling Tower Motor

Upgrade your cooling system with the Baldor CTM1762T, a high-performance chiller and cooling tower motor designed for reliability and efficiency. This robust motor features:

  • Power: 20 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 256T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting Type: Foot-mounted

This motor is ideal for various applications, including industrial cooling systems and chillers, ensuring optimal performance and durability. As a trusted vendor, Baldor provides quality motors that meet the demands of your operations.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CTM1762T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568457337
Supplier Part Number CTM1762T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Chemical Processing (Not DC)
Agency Approvals UR, CURUS, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 299.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CTM1762T
Current @ Voltage 23.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 9.3 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0944M
Mounting Arrangement F1
Number of Poles 4, 8
Output 5.000 hp, 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ, 5.000 HP @ 60 HZ
Overall Length 24.78 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1760 rpm, 875 rpm
Speed Code 2S-1W-VT
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
