Baldor CSSWDM3542 - .75 HP, 1765RPM, 3 Phase, 60HZ, 56C, 3514M, Tenv, F1 60HZ Three Phase 75 HP 3514 M Cable Stainless Steel 56°C

Save $910.80
BaldorSKU: CSSWDM3542

Price:
Sale price$1,366.20 Regular price$2,277.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

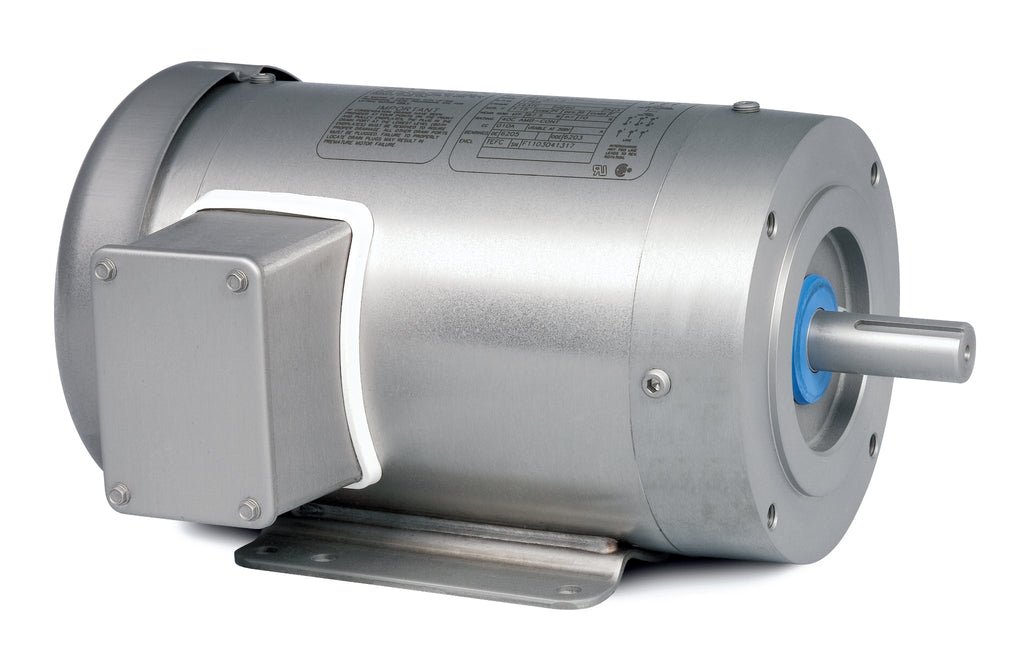

Baldor-Reliance Stainless Steel Motor - Model CSSWDM3542

Upgrade your pumping system with the Baldor CSSWDM3542, a high-performance stainless steel motor designed for durability and efficiency. This motor features a power output of .75 HP and operates at 1765 RPM, making it ideal for various industrial applications.

Key specifications include:

  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 56C
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: CSSWDM3542

This motor is built to withstand harsh environments, making it a reliable choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help!

UPC 781568205624
Supplier Part Number CSSWDM3542
Category AC Motors
Subcategory Stainless Steel Motors
Product Family Wash Down All Stainless Steel
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 42.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CSSWDM3542
Current @ Voltage 1.210 A @ 460.0 V, 2.420 A @ 208.0 V, 2.420 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 11.09 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
