Baldor CSPM3546T - 1 HP, 1770RPM, 3 Phase, 60HZ, 143TC, 3520M, TEFC, F1 60HZ Three Phase 1 HP 3520 M Cable

Save $492.80
BaldorSKU: CSPM3546T

Price:
Sale price$739.20 Regular price$1,232.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

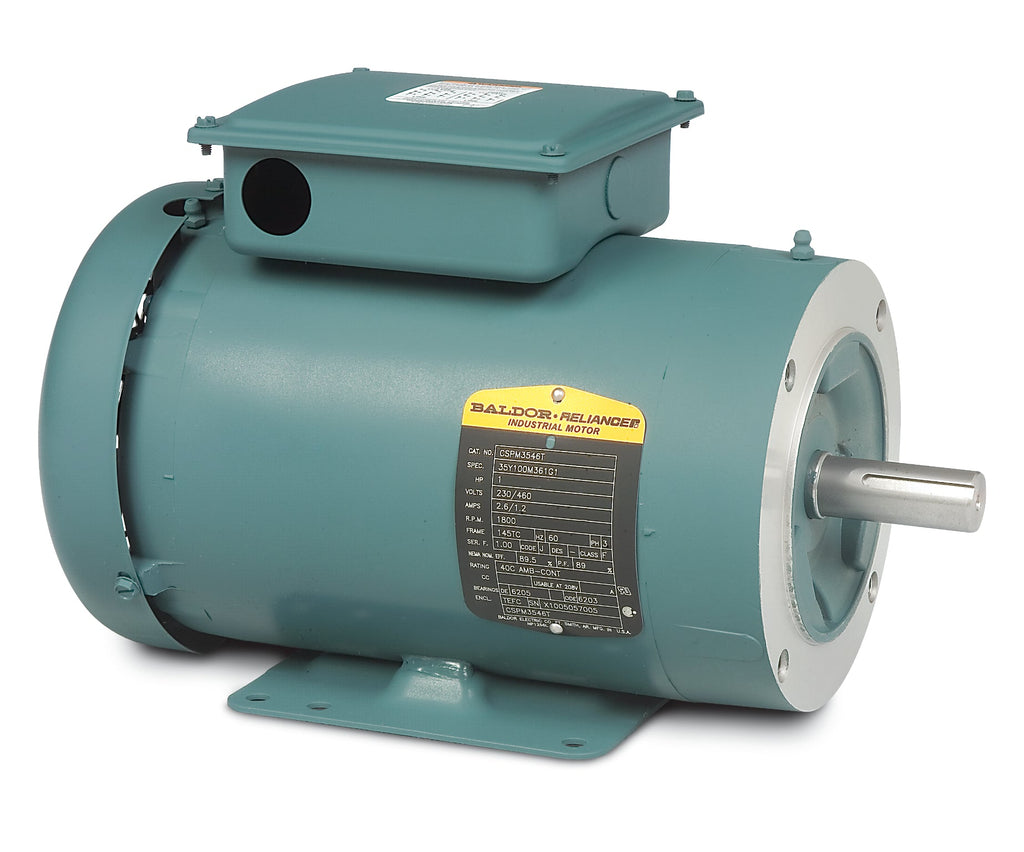

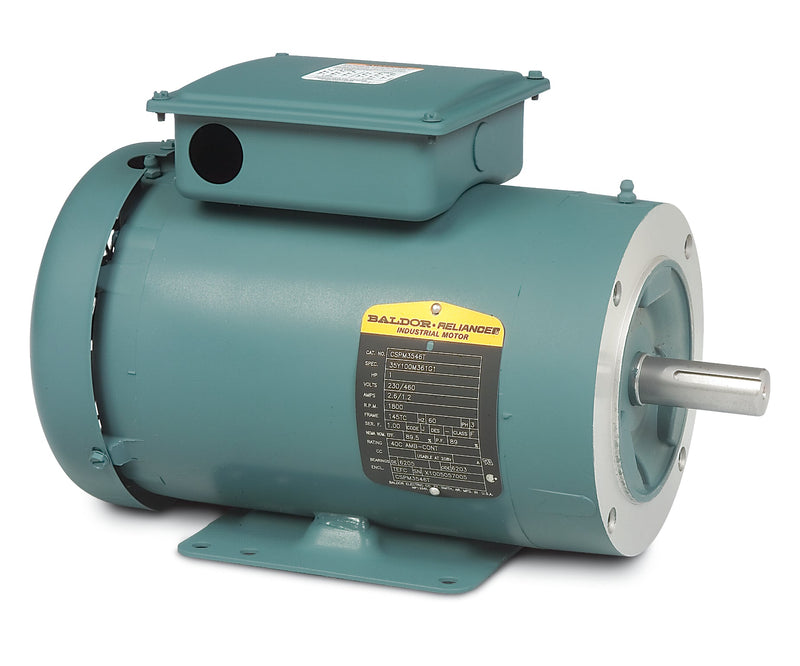

Baldor CSPM3546T - 1 HP Synchronous Permanent Magnet Motor

Upgrade your pumping system with the Baldor CSPM3546T, a high-performance 1 HP Synchronous Permanent Magnet Motor designed for efficiency and reliability. Operating at 1770 RPM and compatible with 3 Phase power at 60HZ, this motor is ideal for various industrial applications.

Key specifications include:

  • Power: 1 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 143TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CSPM3546T

This motor is built to last, featuring a robust design that ensures optimal performance in demanding environments. Whether you are replacing an old motor or upgrading your system, the Baldor CSPM3546T is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CSPM3546T. Our team is here to help you find the perfect solution for your needs.

UPC 781568495704
Supplier Part Number CSPM3546T
Category AC Motors
Subcategory Synchronous Permanent Magnet Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 37.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CSPM3546T
Current @ Voltage 1.200 A @ 460.0 V, 2.600 A @ 230.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3520M
Mounting Arrangement F3
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 13.29 IN
Phase 3
Power Factor 89
Product Type SYNCHRONOUS PERMANENT MAGNET
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
