Baldor CL3712T - 10 HP, 1740RPM, 1 Phase, 60HZ, 215TC, 3748LC, TEFC 60HZ Single Phase Single Phase 10 HP

Save $1,726.40
BaldorSKU: CL3712T

Price:
Sale price$2,589.60 Regular price$4,316.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

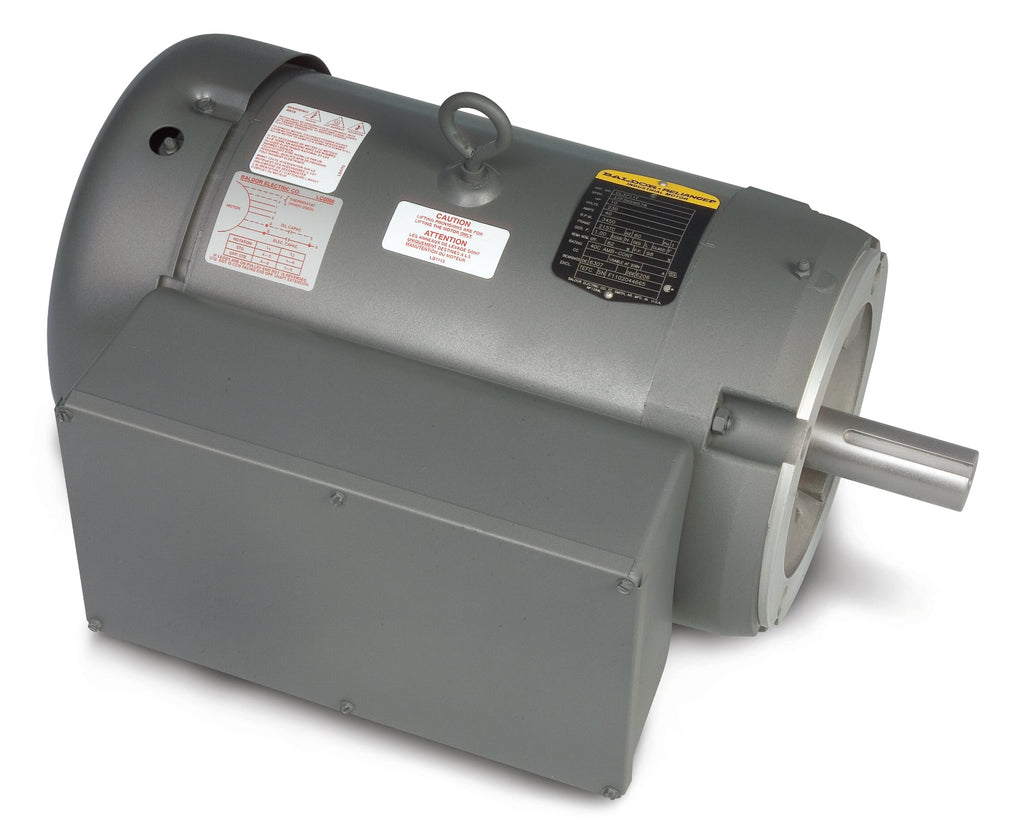

Baldor CL3712T - 10 HP Single Phase Enclosed Motor

Upgrade your pumping system with the Baldor CL3712T, a powerful 10 HP motor designed for efficiency and reliability. Operating at 1740 RPM, this single-phase motor is perfect for a variety of applications requiring robust performance. With a frequency of 60Hz and a 215TC frame size, this TEFC (Totally Enclosed Fan Cooled) motor ensures durability and protection against environmental factors.

Key Features:

  • Power: 10 HP
  • Speed: 1740 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 215TC
  • Type: TEFC Enclosed

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CL3712T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568207970
Supplier Part Number CL3712T
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 171.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CL3712T
Current @ Voltage 38.000 A @ 230.0 V, 40.000 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 38.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Cap Box
Motor Lead Quantity/Wire Size 2 @ 10 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3748LC
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 21.25 IN
Phase 1
Power Factor 98
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1740 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
