Baldor CL3516TM - 2 HP, 1740RPM, 1 Phase, 60HZ, 145TC, 3534LC, TEFC, F 60HZ Single Phase Single Phase 2 HP

Save $744.80
BaldorSKU: CL3516TM

Price:
Sale price$1,117.20 Regular price$1,862.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

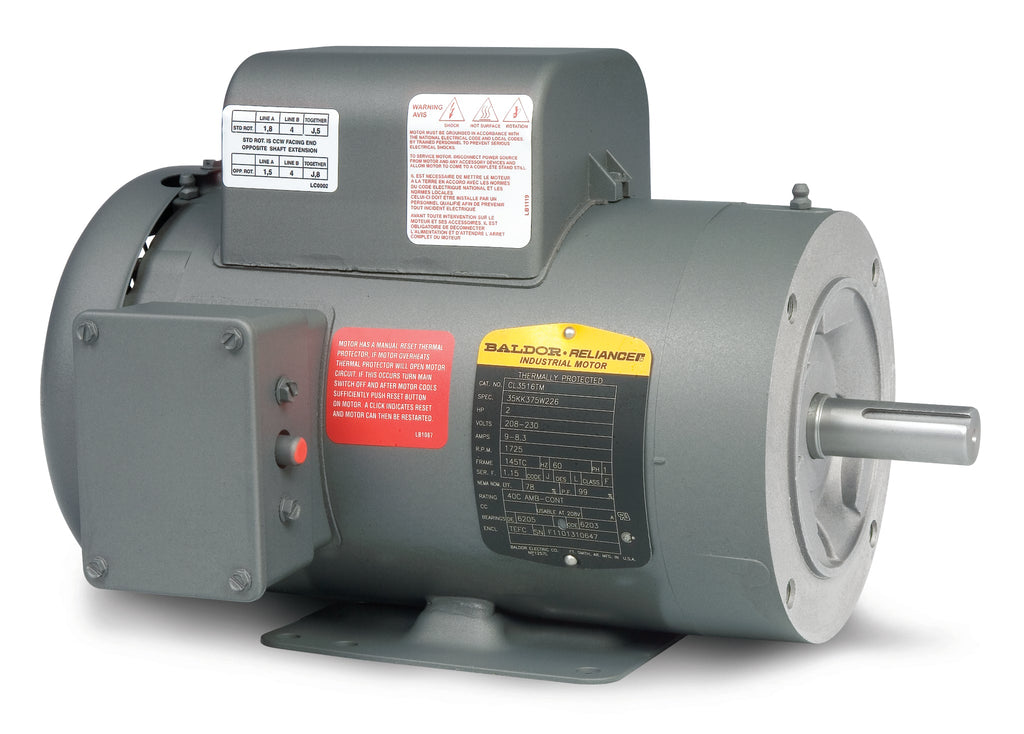

Baldor CL3516TM - 2 HP Single Phase Enclosed Motor

The Baldor CL3516TM is a high-performance single phase enclosed motor designed for reliable operation in various applications. With a power output of 2 HP and a speed of 1740 RPM, this motor is ideal for driving pumps and other machinery that require consistent performance.

  • Power: 2 HP
  • Speed: 1740 RPM
  • Phase: Single Phase
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CL3516TM

This Baldor-Reliance motor is built to withstand harsh conditions while providing efficient and quiet operation. Its TEFC design ensures protection against dust and moisture, making it suitable for both indoor and outdoor applications.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CL3516TM to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568112427
Supplier Part Number CL3516TM
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 53.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CL3516TM
Current @ Voltage 8.200 A @ 230.0 V, 8.900 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.2 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 16 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3535LC
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 14.16 IN
Phase 1
Power Factor 99
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1740 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location KO
Winding Thermal 2 None
