Baldor CL3515 - 2 HP, 3450RPM, 1 Phase, 60HZ, 56C, 3535L, TEFC, F1 60HZ Single Phase Single Phase 2 HP 56°C

Save $578.40
BaldorSKU: CL3515

Price:
Sale price$867.60 Regular price$1,446.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

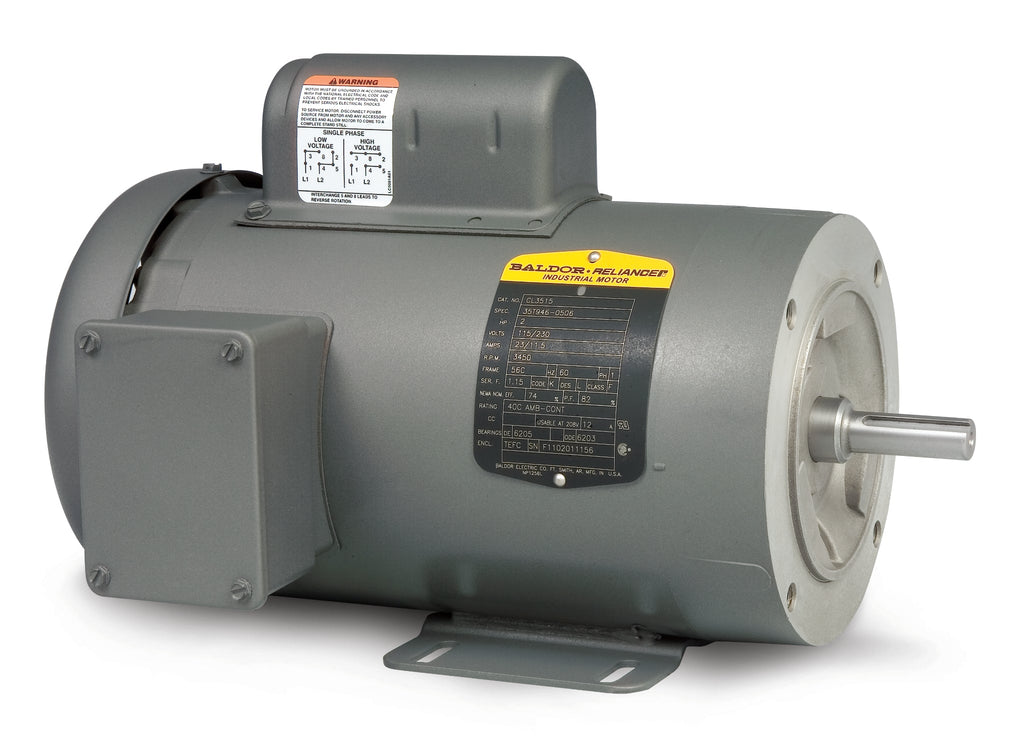

Baldor CL3515 - 2 HP Single Phase Enclosed Motor

The Baldor CL3515 is a high-performance single phase enclosed motor designed for reliable operation in various applications. With a robust 2 HP power output and a speed of 3450 RPM, this motor is ideal for driving pumps and other machinery that require efficient and consistent performance.

Specifications:

  • Power: 2 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CL3515

This Baldor-Reliance motor is built to last, featuring a durable design that ensures longevity and minimal maintenance. It is perfect for applications requiring a dependable power source.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CL3515 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568204443
Supplier Part Number CL3515
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 50.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CL3515
Current @ Voltage 11.500 A @ 230.0 V, 12.000 A @ 208.0 V, 23.000 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 11.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3535L
Mounting Arrangement F1
Number of Poles 2
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 14.10 IN
Phase 1
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 208 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
