Baldor CL1408TM - 3 HP, 1725RPM, 1 Phase, 60HZ, 184TC, 3634LC, Open 60HZ Single Phase Single Phase 3 HP

Save $716.80
BaldorSKU: CL1408TM

Price:
Sale price$1,075.20 Regular price$1,792.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

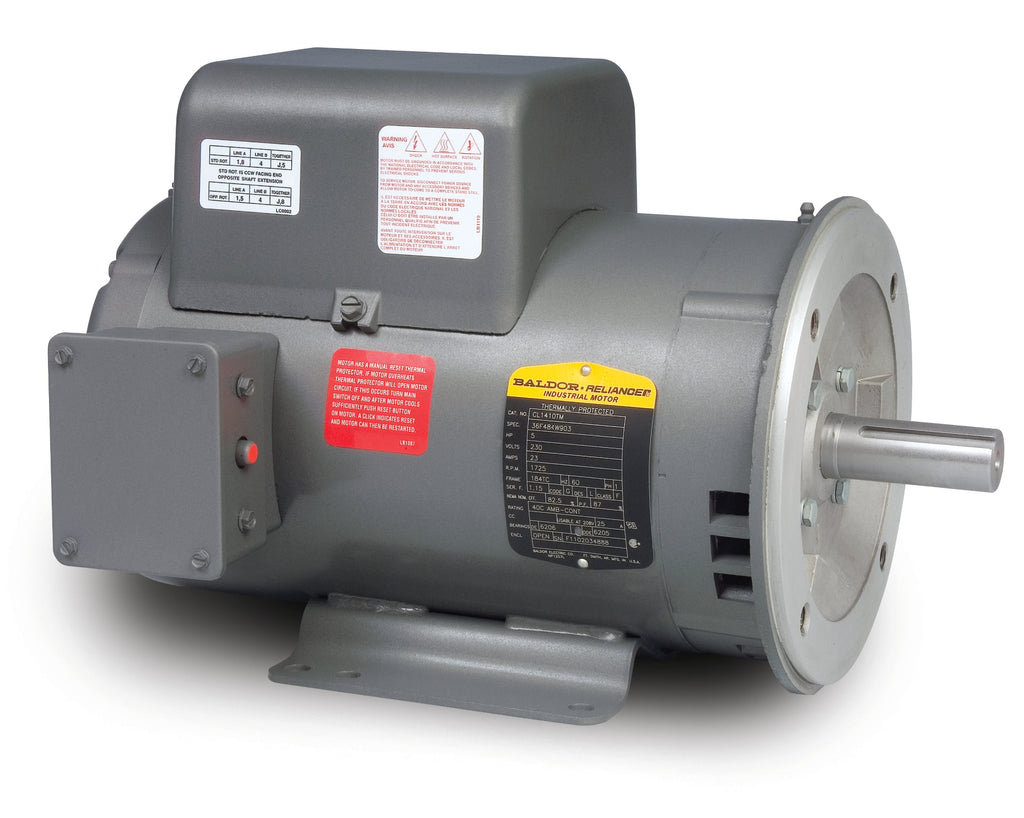

Baldor CL1408TM - 3 HP Single Phase Open Motor

The Baldor CL1408TM is a high-performance single-phase motor designed for various applications requiring reliable power and efficiency. With a robust 3 HP output and a speed of 1725 RPM, this motor is ideal for driving pumps and other machinery in both residential and commercial settings.

  • Power: 3 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60 Hz
  • Frame Size: 184TC
  • Enclosure Type: Open
  • Product Code: CL1408TM

This Baldor-Reliance motor is built for durability and efficiency, making it a preferred choice for those seeking reliable performance. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor CL1408TM. If you encounter any difficulties in finding the right item, our knowledgeable team is here to help!

UPC 781568112588
Supplier Part Number CL1408TM
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 80.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CL1408TM
Current @ Voltage 16.000 A @ 230.0 V, 32.000 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 16.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A&J
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3634LC
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 15.00 IN
Phase 1
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location SK
Winding Thermal 2 None
