Baldor CJM3542 - .75 HP, 1725RPM, 3 Phase, 60HZ, 56J, 3420M, TEFC, F1 60HZ Three Phase 75 HP 3420 M Cable

Save $331.20
BaldorSKU: CJM3542

Price:
Sale price$496.80 Regular price$828.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

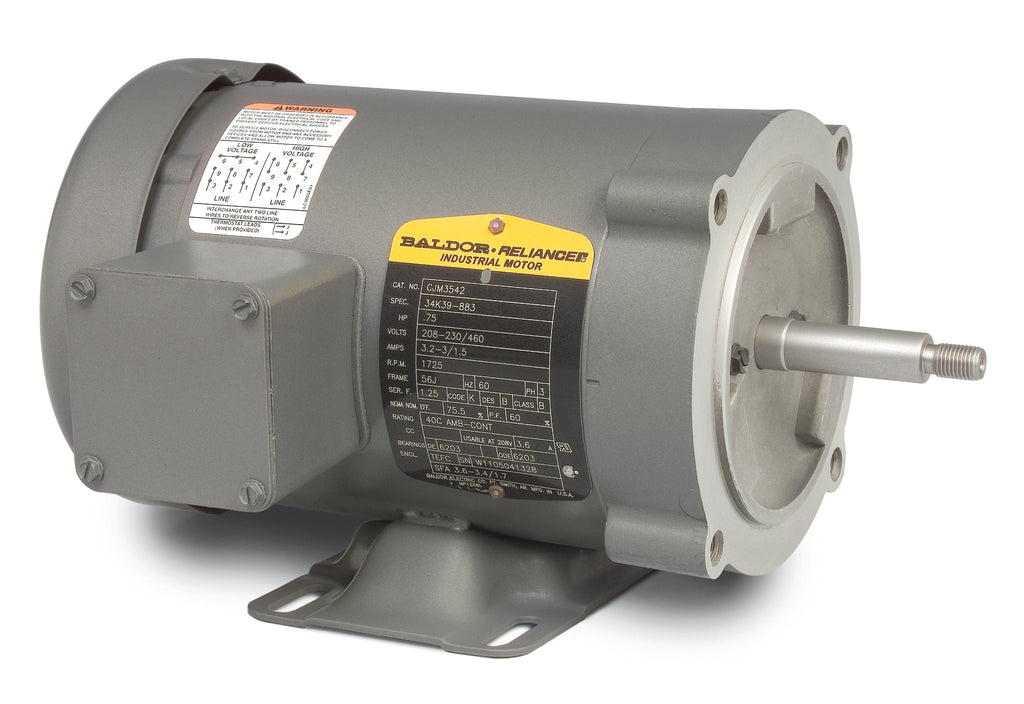

Baldor-Reliance 56J Jet Pump Motor - Model CJM3542

Upgrade your pumping system with the Baldor CJM3542 Jet Pump Motor. This high-performance motor delivers .75 HP and operates at 1725 RPM, making it ideal for a variety of applications. Designed for 3-phase power and 60Hz frequency, this motor is built to provide reliable and efficient performance.

Key features include:

  • Power: .75 HP
  • Speed: 1725 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame: 56J
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CJM3542

As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right motor for your needs. If you have questions or need assistance, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is ready to assist you.

Choose the Baldor-Reliance 56J Jet Pump Motor for durability and efficiency in your pumping applications.

UPC 781568113066
Supplier Part Number CJM3542
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 25.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CJM3542
Current @ Voltage 3.600 A @ 208.0 V, 3.200 A @ 208.0 V, 3.000 A @ 230.0 V, 1.500 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.5 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3420M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 11.84 IN
Phase 3
Power Factor 60
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ, 208.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
