Baldor CJL3507A - .75 HP, 1725RPM, 1 Phase, 60HZ, 56J, 3428LC, TEFC, F 60HZ Single Phase 75 HP

Save $430.00
BaldorSKU: CJL3507A

Price:
Sale price$645.00 Regular price$1,075.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

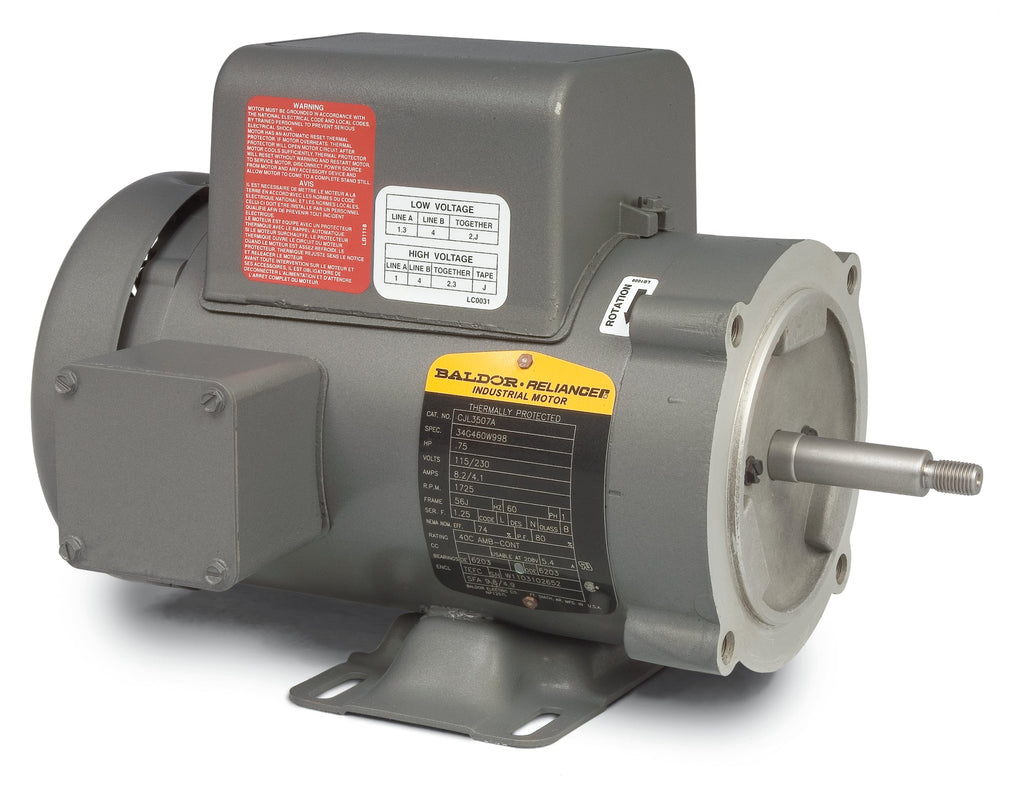

Baldor-Reliance 56J Jet Pump Motor - Model CJL3507A

Upgrade your pumping system with the Baldor-Reliance 56J Jet Pump Motor, featuring a robust .75 HP power output and a reliable 1725 RPM speed. Designed for single-phase operation at 60HZ, this motor is ideal for various applications requiring efficient and consistent performance.

Key specifications include:

  • Power: .75 HP
  • Speed: 1725 RPM
  • Phase: 1 Phase
  • Frequency: 60HZ
  • Frame: 56J
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CJL3507A

This motor is built to last, ensuring durability and reliability in demanding environments. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, providing quality products to meet your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568112762
Supplier Part Number CJL3507A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CJL3507A
Current @ Voltage 4.100 A @ 230.0 V, 5.400 A @ 208.0 V, 8.200 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.1 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3428LC
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 12.97 IN
Phase 1
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
