Baldor CJL3501A - .33 HP, 1725RPM, 1 Phase, 60HZ, 56J, 3414L, TEFC, F1 60HZ Single Phase 33 HP

Save $299.60
BaldorSKU: CJL3501A

Price:
Sale price$449.40 Regular price$749.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

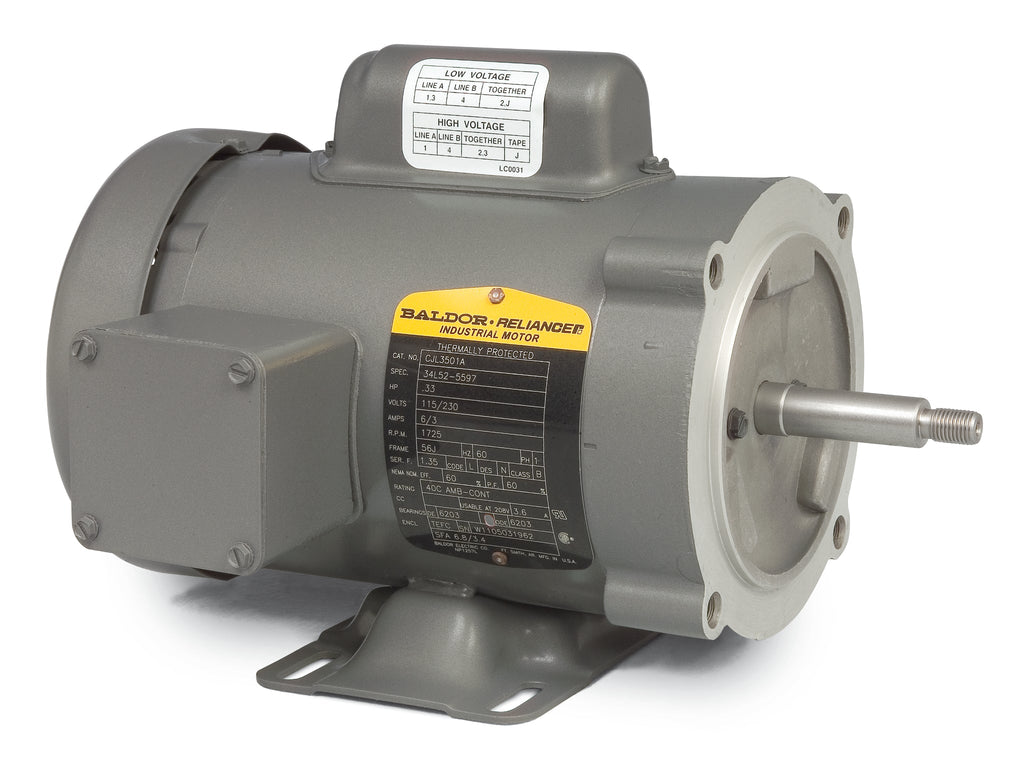

Baldor-Reliance 56J Jet Pump Motor - Model CJL3501A

Upgrade your pumping system with the Baldor CJL3501A Jet Pump Motor. This reliable motor features a power output of .33 HP and operates at 1725 RPM, making it ideal for various applications requiring efficient performance. Designed for single-phase operation at 60HZ, this motor is built to last with a TEFC (Totally Enclosed Fan Cooled) enclosure that protects against dust and moisture.

Key Specifications:

  • Power: .33 HP
  • Speed: 1725 RPM
  • Phase: 1
  • Frequency: 60HZ
  • Frame: 56J
  • Product Code: CJL3501A

As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right motor for your needs. If you have questions or need assistance locating the correct part, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Choose the Baldor-Reliance 56J Jet Pump Motor for dependable performance and efficiency in your pumping applications.

UPC 781568112748
Supplier Part Number CJL3501A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 23.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CJL3501A
Current @ Voltage 3.000 A @ 230.0 V, 3.600 A @ 208.0 V, 6.000 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 60.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 5 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3414L
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 11.84 IN
Phase 1
Power Factor 60
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location ES
Winding Thermal 2 None
