Baldor CHM565A - 1 HP, 1170RPM, 3 Phase, 60HZ, 56, 3526M, Teao, F1, N 60HZ Three Phase 1 HP 3526 M Cable

Save $408.40
BaldorSKU: CHM565A

Price:
Sale price$612.60 Regular price$1,021.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

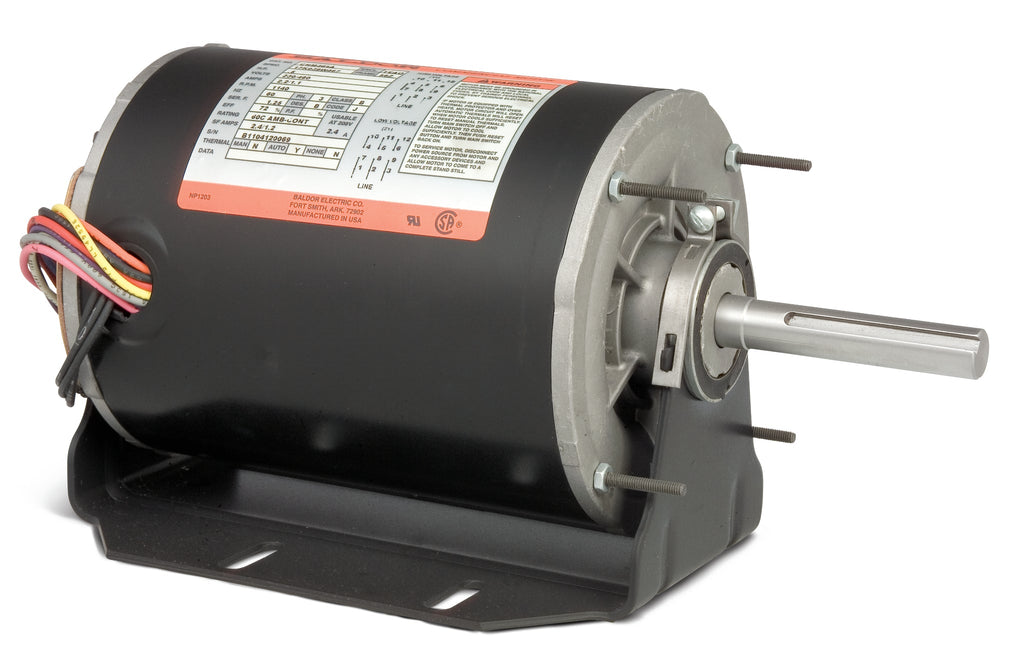

Baldor CHM565A Direct Drive Fan Motor

Upgrade your equipment with the Baldor CHM565A, a high-performance 1 HP Direct Drive Fan Motor designed for efficiency and reliability. Operating at 1170 RPM and compatible with 3 Phase power at 60HZ, this motor is ideal for various applications requiring robust performance.

Specifications:

  • Power: 1 HP
  • Speed: 1170 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame: 56
  • Model: 3526M
  • Enclosure: TEAO (Totally Enclosed Air Over)
  • Mounting: F1
  • Product Code: CHM565A

This Baldor-Reliance motor is engineered for durability and optimal performance, making it a perfect choice for your direct drive fan applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, please check your current pump for the exact part number or SKU that matches the Baldor CHM565A. If you have any questions or need assistance in finding the right item, feel free to call us at (781) 281-8905. Our team is here to help you make the best choice for your application.

UPC 781568748183
Supplier Part Number CHM565A
Category AC Motors
Subcategory Direct Drive Fan Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 40.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CHM565A
Current @ Voltage 1.900 A @ 460.0 V, 3.800 A @ 208.0 V, 3.800 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.9 a
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3524M
Mounting Arrangement F1
Number of Poles 6
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.41 IN
Phase 3
Power Factor 64
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1170 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location ES
Winding Thermal 2 None
