Baldor CHC565A - 1 Air Overhp, 1090RPM, 1 Phase, 60HZ, 56, 3534C, T 60HZ Single Phase 3534°C

Save $475.60
BaldorSKU: CHC565A

Price:
Sale price$713.40 Regular price$1,189.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

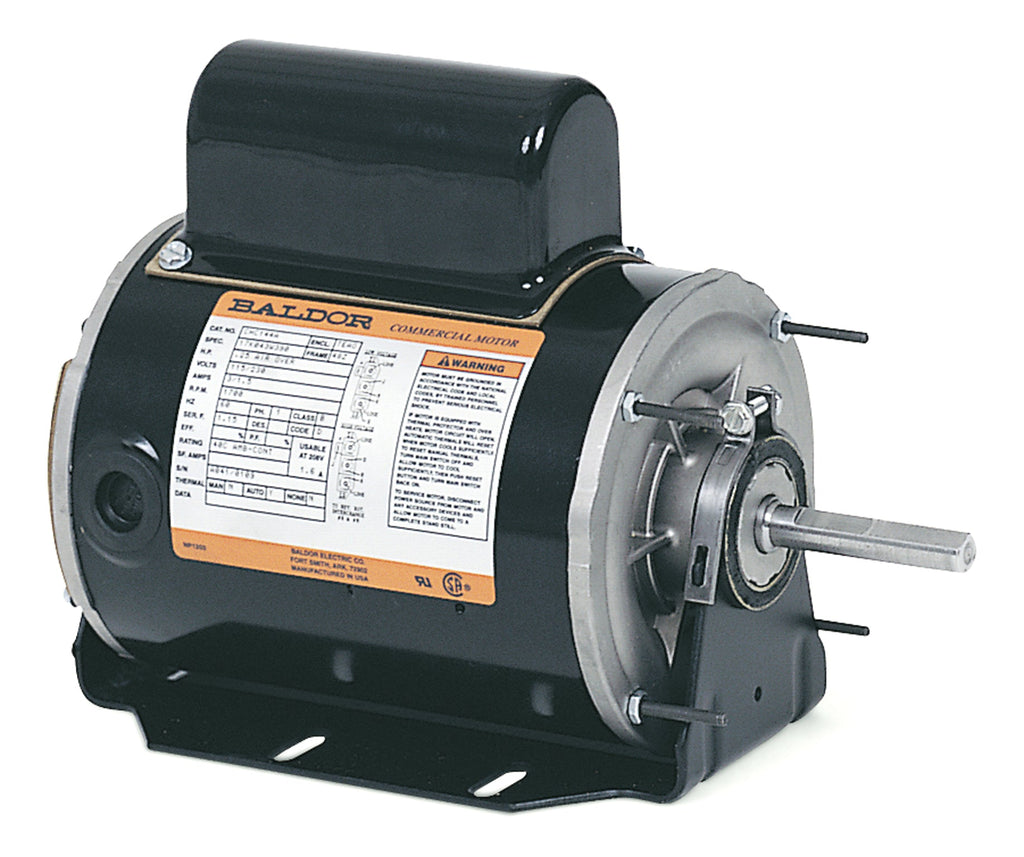

Baldor CHC565A - General Purpose HVAC Motor

The Baldor CHC565A is a high-performance air-over horsepower motor designed for general purpose HVAC applications. Operating at 1090 RPM, this single-phase motor is engineered for efficiency and reliability, making it an ideal choice for various heating, ventilation, and air conditioning systems.

  • Product Code: CHC565A
  • Type: General Purpose HVAC Motor
  • Phase: 1 Phase
  • Frequency: 60Hz
  • Frame Size: 56
  • Temperature Rating: 3534C

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CHC565A to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568688724
Supplier Part Number CHC565A
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 51.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CHC565A
Current @ Voltage 10.600 A @ 115.0 V, 5.300 A @ 230.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 62.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.3 a
Insulation Class F
Inverter Code Not Inverter
KVA Code B
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Oil Capacitor Start and Run
Motor Standards NEMA
Motor Type 3535C
Mounting Arrangement F1
Number of Poles 6
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 13.28 IN
Phase 1
Power Factor 90
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1075 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
