Baldor CHC545A - 1 Air Overhp, 1710RPM, 1 Phase, 60HZ, 56, 3528C, T 60HZ Single Phase 3528°C

Save $351.60
BaldorSKU: CHC545A

Price:
Sale price$527.40 Regular price$879.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

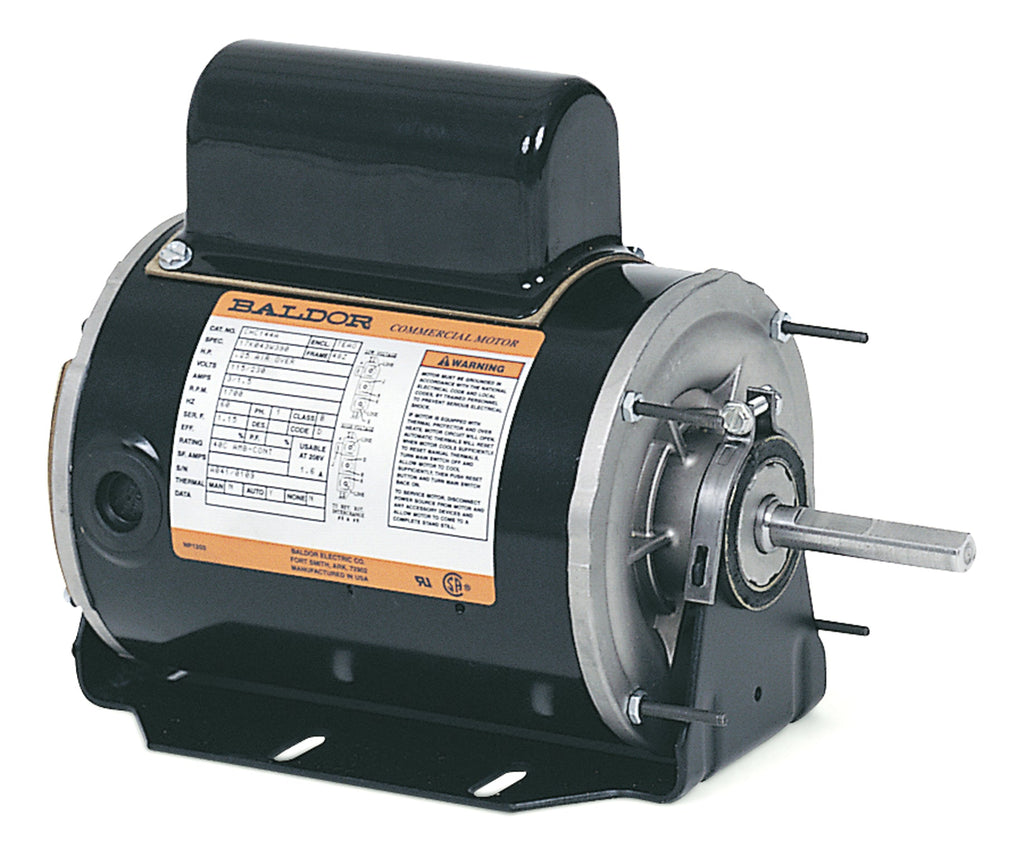

Baldor CHC545A - Direct Drive Fan Motor

The Baldor CHC545A is a high-performance direct drive fan motor designed for reliable operation in various applications. With a robust 1 horsepower rating, this motor operates at 1710 RPM and is specifically engineered for single-phase power at 60Hz. Its durable construction and efficient design make it an ideal choice for those seeking dependable performance in air handling and ventilation systems.

Key Features:

  • Power: 1 HP
  • Speed: 1710 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56
  • Temperature Rating: 3528C

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CHC545A to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568704486
Supplier Part Number CHC545A
Category AC Motors
Subcategory Direct Drive Fan Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 39.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CHC545A
Current @ Voltage 10.200 A @ 115.0 V, 5.100 A @ 230.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.1 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Oil Capacitor Start and Run
Motor Standards NEMA
Motor Type 3528C
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.41 IN
Phase 1
Power Factor 82
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1710 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
