Baldor CHC365A - .5 HP, 1100RPM, 1 Phase, 60HZ, 56YZ, 3428C, Teao, F1 60HZ Single Phase 5 HP 3428°C

Save $332.00
BaldorSKU: CHC365A

Price:
Sale price$498.00 Regular price$830.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

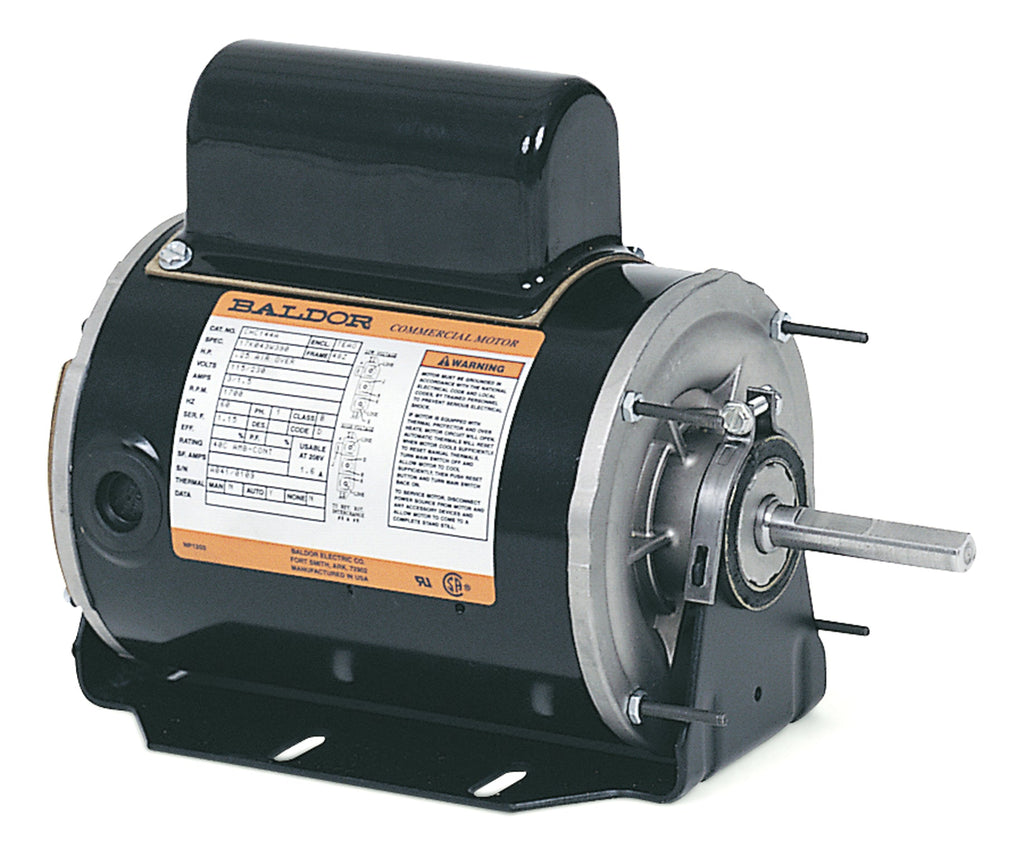

Baldor CHC365A General Purpose HVAC Motor

Upgrade your HVAC system with the Baldor CHC365A, a reliable and efficient general-purpose motor designed for optimal performance. This motor features:

  • Power: 0.5 HP
  • Speed: 1100 RPM
  • Phase: Single Phase
  • Frequency: 60 Hz
  • Frame Size: 56YZ
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Product Code: CHC365A

This Baldor-Reliance motor is perfect for various HVAC applications, ensuring durability and efficiency. At Pump-Stop, we are your preferred source for replacement pumps and parts, providing you with the best options for your needs.

Before purchasing, please check your current pump for the exact part number or SKU that matches the Baldor CHC365A. If you have any questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. Our team is here to help you make the right choice!

UPC 781568413913
Supplier Part Number CHC365A
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 34.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CHC365A
Current @ Voltage 3.200 A @ 230.0 V, 3.300 A @ 208.0 V, 6.400 A @ 115.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 64.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 56YZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Resilient Mount
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.2 a
Insulation Class B
Inverter Code Not Inverter
KVA Code E
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 7 @ 18 AWG
Motor Lead Termination None
Motor Letter Type Oil Capacitor Start and Run
Motor Standards NEMA
Motor Type 3428C
Mounting Arrangement F1
Number of Poles 6
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 13.58 IN
Phase 1
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 1100 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location WG
Winding Thermal 2 None
