Baldor CFSWDM41906T-E - 20 HP, 3540RPM, 3 Phase, 60HZ, 256TC, TEFC, F1 60HZ Three Phase 20 HP Stainless Steel

Save $5,283.20
BaldorSKU: CFSWDM41906T-E

Price:
Sale price$7,924.80 Regular price$13,208.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

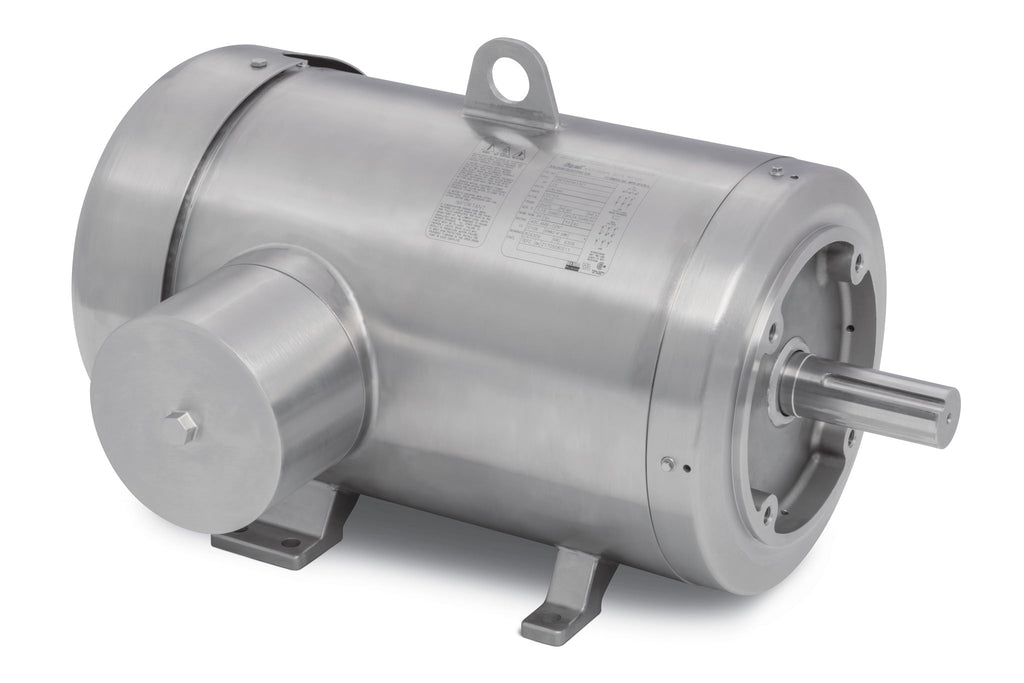

Baldor-Reliance Food Safe Stainless Steel Motor - CFSWDM41906T-E

Upgrade your pumping system with the Baldor CFSWDM41906T-E, a high-performance 20 HP food safe stainless steel motor designed for durability and efficiency. Operating at 3540 RPM, this 3-phase motor is perfect for a variety of industrial applications, particularly in food processing environments where hygiene and reliability are paramount.

Specifications:

  • Power: 20 HP
  • Speed: 3540 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 256TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

This motor is engineered to meet the rigorous demands of food processing applications, ensuring compliance with safety and sanitation standards. Its stainless steel construction provides excellent resistance to corrosion and wear, making it a reliable choice for long-term use.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568874325
Supplier Part Number CFSWDM41906T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals NEMA PREMIUM, NEMA_PREMIUM, UR, CURUSEEV, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 295.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type POLYREX SHC102 EM (-20F +356F)
Blower None
Catalog Number CFSWDM41906T-E
Current @ Voltage 23.000 A @ 460.0 V, 46.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 23.0 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3960M
Mounting Arrangement F1
Number of Poles 2
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 25.19 IN
Phase 3
Power Factor 90
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3540 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
