Baldor CFSWDM3613T-E - 5 HP, 3500RPM, 3 Phase, 60HZ, 184TC, 3634M, TEFC, F1 60HZ Three Phase 5 HP 3634 M Cable Stainless Steel

Save $1,886.40
BaldorSKU: CFSWDM3613T-E

Price:
Sale price$2,829.60 Regular price$4,716.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

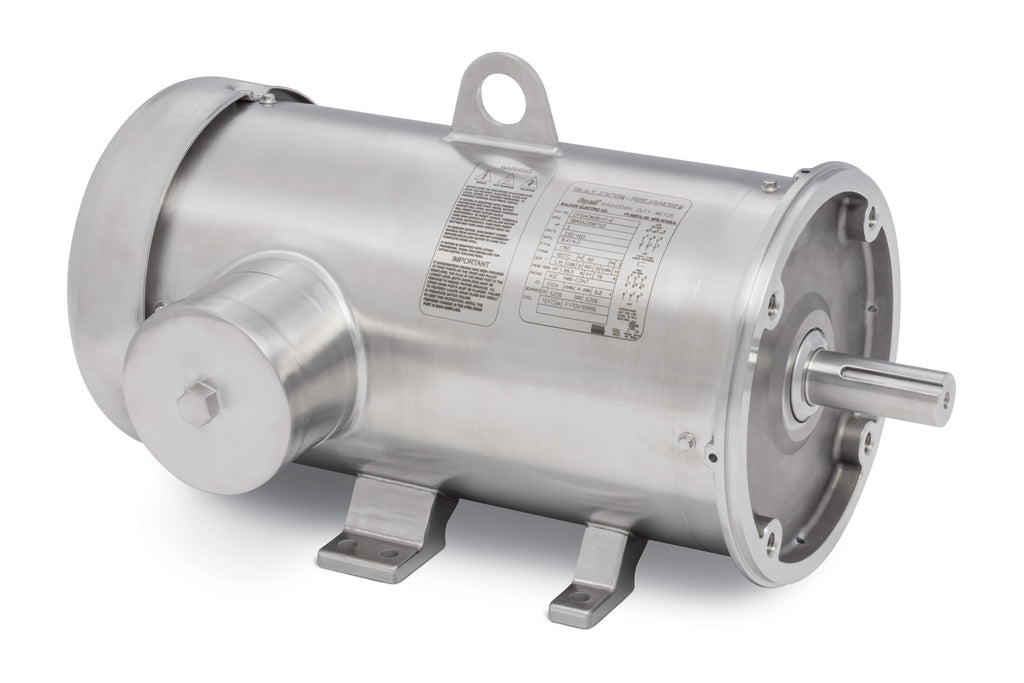

Baldor CFSWDM3613T-E - 5 HP Food Safe Stainless Steel Motor

Upgrade your pumping system with the Baldor CFSWDM3613T-E, a high-performance 5 HP motor designed specifically for food-safe applications. Operating at 3500 RPM, this robust 3-phase motor is engineered to meet the rigorous demands of the food industry while ensuring reliability and efficiency.

  • Power: 5 HP
  • Speed: 3500 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 184TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting Type: F1
  • Product Code: CFSWDM3613T-E

This motor is constructed from high-quality stainless steel, ensuring durability and resistance to corrosion, making it ideal for food processing environments. With its TEFC design, it provides excellent protection against dust and moisture, enhancing its longevity and performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CFSWDM3613T-E to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568864012
Supplier Part Number CFSWDM3613T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals CSA EEV, CURUSEEV, NEMA_PREMIUM, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 84.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM3613T-E
Current @ Voltage 5.600 A @ 460.0 V, 12.000 A @ 208.0 V, 11.200 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.6 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code L
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5400 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3634M
Mounting Arrangement F1
Number of Poles 2
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 17.39 IN
Phase 3
Power Factor 95
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3500 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
