Baldor CFSWDM3613T-5E - 5 HP, 3500RPM, 3 Phase, 60HZ, 184TC, 3634M, TEFC, F1 60HZ Three Phase 5 HP 3634 M Cable Stainless Steel

Save $1,928.80
BaldorSKU: CFSWDM3613T-5E

Price:
Sale price$2,893.20 Regular price$4,822.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

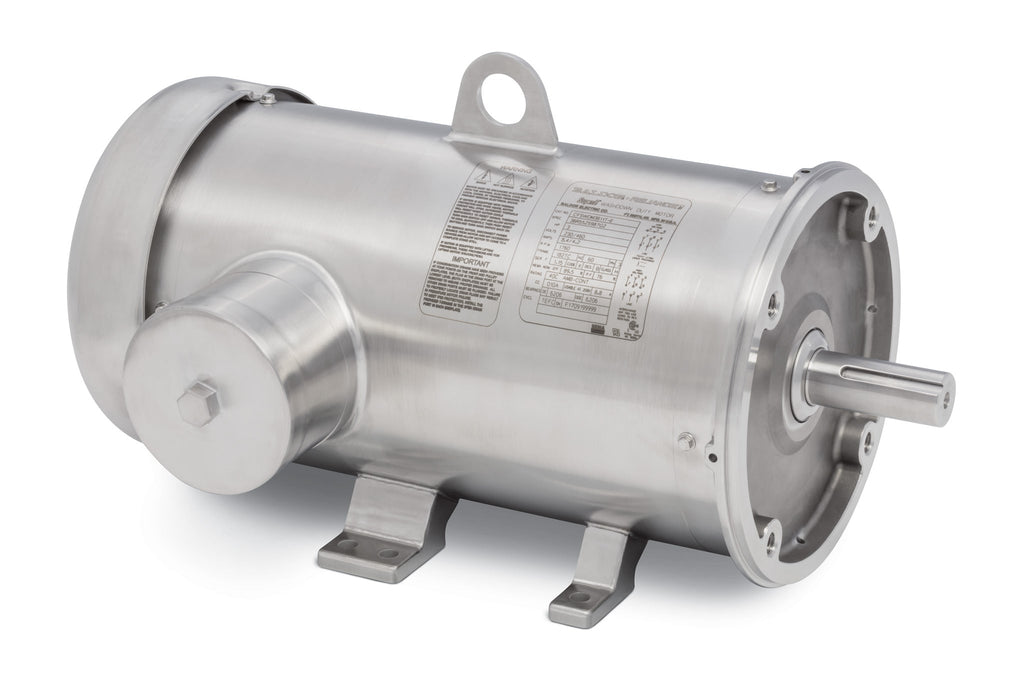

Baldor CFSWDM3613T-5E - 5 HP Food Safe Stainless Steel Motor

The Baldor CFSWDM3613T-5E is a high-performance 5 HP motor designed specifically for food processing applications. Operating at 3500 RPM, this robust 3-phase motor is engineered to meet the rigorous demands of the food industry while ensuring safety and reliability.

  • Power: 5 HP
  • Speed: 3500 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 184TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting Type: F1
  • Product Code: CFSWDM3613T-5E

This motor is constructed from food-safe stainless steel, making it ideal for environments where hygiene is paramount. Its TEFC design ensures durability and protection against dust and moisture, making it suitable for various applications in the food processing sector.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CFSWDM3613T-5E to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568864005
Supplier Part Number CFSWDM3613T-5E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals CSA EEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 84.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM3613T-5E
Current @ Voltage 4.500 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.5 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code L
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3634M
Mounting Arrangement F1
Number of Poles 2
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 17.39 IN
Phase 3
Power Factor 95
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3500 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
