Baldor CFSWDM3607T-E - 1.5 HP, 1170RPM, 3 Phase, 60HZ, 182TC, 3640M, TEFC 60HZ Three Phase 1.5 HP 3640 M Cable Stainless Steel

Save $1,546.00
BaldorSKU: CFSWDM3607T-E

Price:
Sale price$2,319.00 Regular price$3,865.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

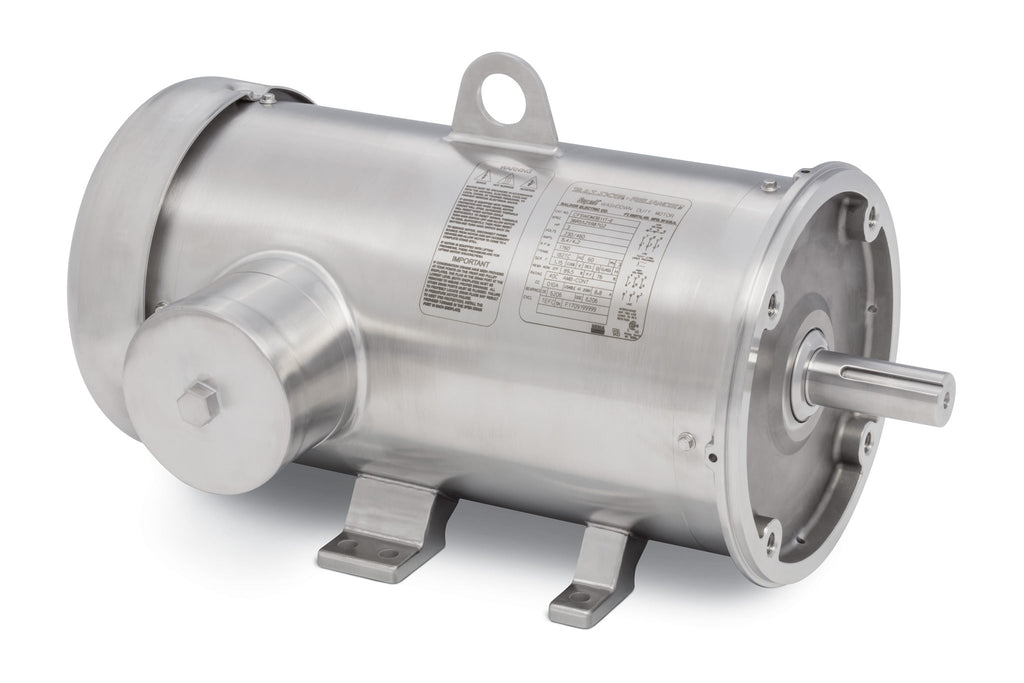

Baldor-Reliance Food Safe Stainless Steel Motor - CFSWDM3607T-E

Upgrade your pumping system with the Baldor CFSWDM3607T-E, a high-performance food safe stainless steel motor designed for durability and efficiency. This 1.5 HP motor operates at 1170 RPM and is engineered for three-phase applications at 60Hz, making it an ideal choice for various industrial and food processing environments.

Key Features:

  • Power: 1.5 HP
  • Speed: 1170 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 182TC
  • TEFC (Totally Enclosed Fan Cooled) design for enhanced protection
  • Stainless steel construction for food safety compliance

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568863824
Supplier Part Number CFSWDM3607T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals NEMA_PREMIUM, UR, WEEE, CURUSEEV, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 90.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM3607T-E
Current @ Voltage 2.600 A @ 460.0 V, 5.200 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 87.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.6 a
Insulation Class H
Inverter Code Not Inverter
KVA Code L
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3640M
Mounting Arrangement F1
Number of Poles 6
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 18.89 IN
Phase 3
Power Factor 62
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1170 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
