Description

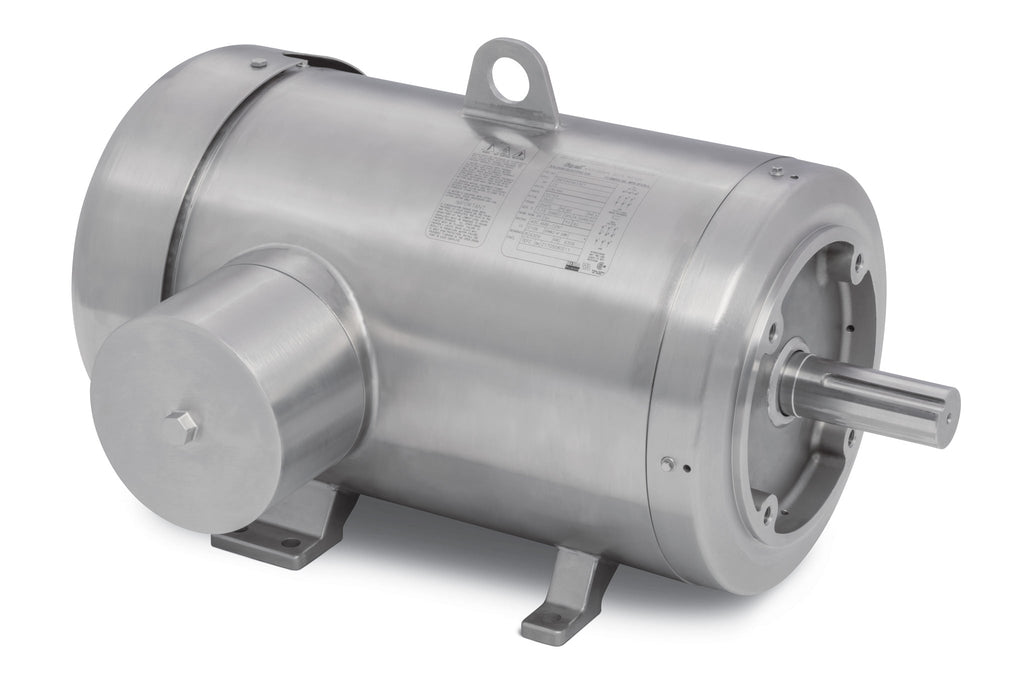

Baldor Replacement Part — Component
The Baldor CFSWDM23994T-E (Stainless Steel) for Baldor pump systems.
Part Specifications
| Part Number | CFSWDM23994T-E |
| Material | Stainless Steel |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568874318
- Supplier Part Number
- CFSWDM23994T-E
- Category
- AC Motors
- Subcategory
- Food Safe Stainless Steel Motors
- Product Family
- WD All SS Encapsulated
- Agency Approvals
- CSA EEV, CURUSEEV, NEMA_PREMIUM, UR
- Ambient Temperature
- 40 °C
- Approximate Weight (lbs)
- 260.0
- Auxillary Box
- No Auxillary Box
- Auxillary Box Lead Termination
- None
- Base Indicator
- Rigid
- Bearing Grease Type
- POLYREX SHC102 EM (-20F +356F)
- Blower
- None
- Catalog Number
- CFSWDM23994T-E
- Current @ Voltage
- 34.000 A @ 230.0 V, 17.000 A @ 460.0 V
- Design Code
- A
- Drip Cover
- No Drip Cover
- Duty Rating
- CONT
- Efficiency @ 100% Load
- 91.0 %
- Electrically Isolated Bearing
- Not Electrically Isolated
- Enclosure
- TEFC
- Feedback Device
- NO FEEDBACK
- Frame
- 254TC
- Frame Material
- Stainless Steel
- Frequency
- 60.00 Hz
- Front Face Code
- Standard
- Front Shaft Indicator
- None
- Haz Area Class and Group
- NONE
- Haz Area Division
- Not Applicable
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 17.0 a
- Insulation Class
- H
- Inverter Code
- Inverter Duty
- KVA Code
- K
- Lifting Lugs
- Standard Lifting Lugs
- Locked Bearing Indicator
- Locked Bearing
- Motor Lead Exit
- Ko Box
- Motor Lead Quantity/Wire Size
- 9 @ 12 AWG
- Motor Lead Termination
- Flying Leads
- Motor Letter Type
- Three Phase
- Motor Standards
- NEMA
- Motor Type
- 3952M
- Mounting Arrangement
- F1
- Number of Poles
- 2
- Output
- 15.000 hp
- Output @ Frequency
- 15.000 HP @ 60 HZ
- Overall Length
- 24.19 IN
- Phase
- 3
- Power Factor
- 90
- Pulley End Bearing Type
- Sealed Bearing
- Pulley Face Code
- C-Face
- Pulley Shaft Indicator
- Standard
- Rodent Screen
- None
- RoHS Status
- ROHS COMPLIANT
- Service Factor
- 1
- Shaft Diameter
- 1.625 IN
- Shaft Extension Location
- Pulley End
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Shaft Slinger Indicator
- No Slinger
- Speed
- 3540 rpm
- Speed Code
- Single Speed
- Starting Method
- Direct on line
- Synchronous Speed
- 3,600 rpm
- Synchronous Speed @ Frequency
- 3600 RPM @ 60 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- None
- Vibration Sensor Indicator
- No Vibration Sensor
- Voltage
- 460 V, 230 V
- Voltage @ Frequency
- 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
- Winding Thermal 1
- None
- Winding Thermal 2
- None
