Baldor CFSWDM22976T-E - 7.5 HP, 1180RPM, 3 Phase, 60HZ, 254TC, 3954M, TEFC 60HZ Three Phase 7.5 HP 3954 M Cable Stainless Steel

Save $4,597.60
BaldorSKU: CFSWDM22976T-E

Price:
Sale price$6,896.40 Regular price$11,494.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

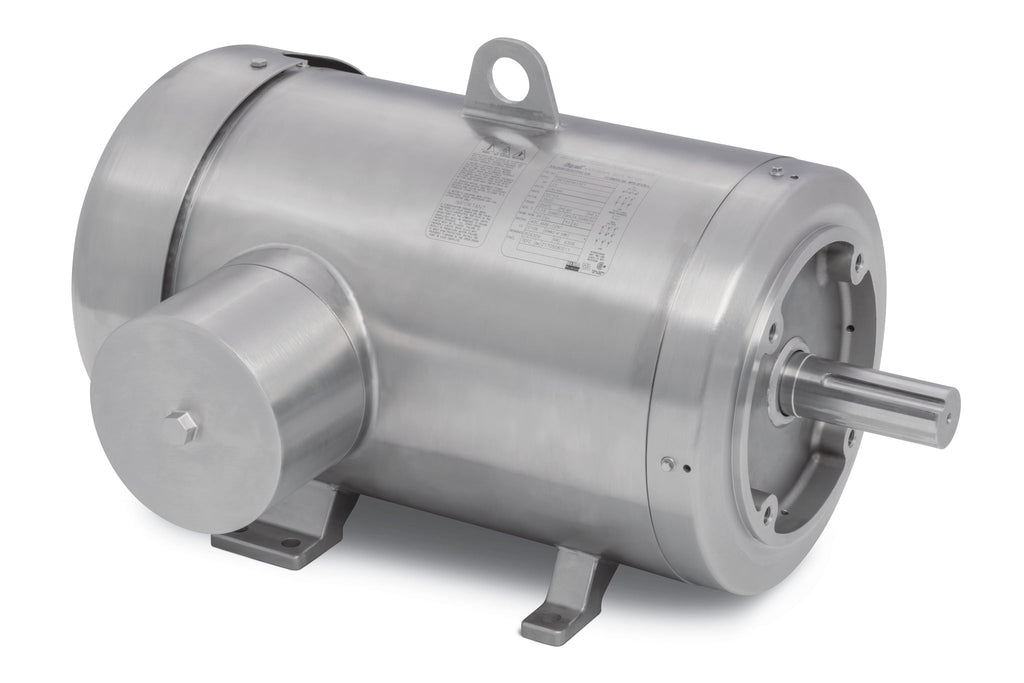

Baldor-Reliance Food Safe Stainless Steel Motor - CFSWDM22976T-E

Upgrade your pumping system with the Baldor CFSWDM22976T-E, a high-performance food safe stainless steel motor designed for durability and efficiency. This 7.5 HP motor operates at 1180 RPM and is engineered for 3-phase, 60Hz applications, making it ideal for various industrial and commercial settings.

Key Features:

  • Power: 7.5 HP
  • Speed: 1180 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 254TC
  • Model: 3954M
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)

This motor is specifically designed to meet the stringent hygiene standards required in food processing environments, ensuring safety and reliability. With its robust stainless steel construction, it resists corrosion and is easy to clean, making it a perfect choice for food and beverage applications.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568863909
Supplier Part Number CFSWDM22976T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals CSA EEV, CURUSEEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 255.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM22976T-E
Current @ Voltage 22.500 A @ 208.0 V, 21.400 A @ 230.0 V, 10.700 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 10.7 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3954M
Mounting Arrangement F1
Number of Poles 6
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 24.18 IN
Phase 3
Power Factor 71
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
