Baldor CFM3156A - 1 Air-Overhp, 1170RPM, 3 Phase, 60HZ, 56YZ, 3522M 60HZ Three Phase 3522 M Cable

Save $475.60
BaldorSKU: CFM3156A

Price:
Sale price$713.40 Regular price$1,189.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

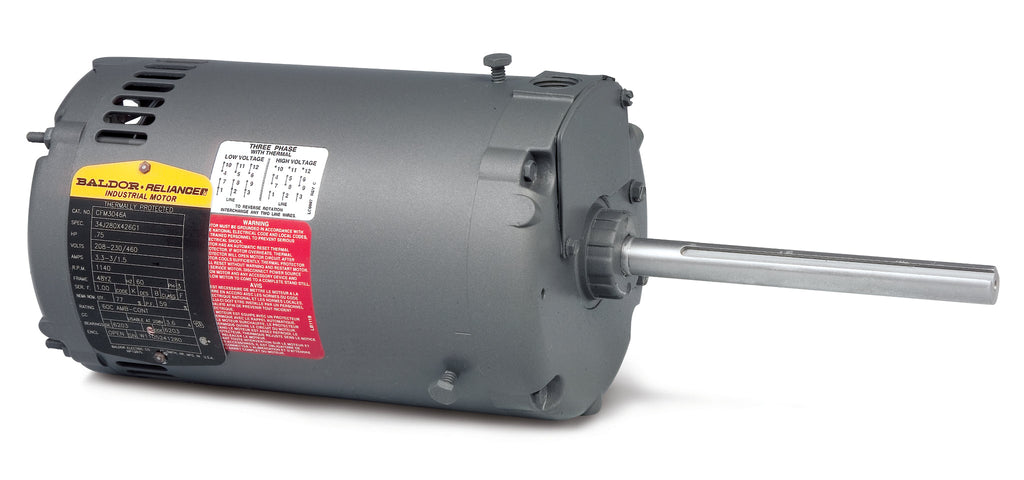

Baldor CFM3156A Condenser Fan Motor

The Baldor CFM3156A is a high-performance air-over horsepower condenser fan motor designed for reliable operation in various applications. With a speed of 1170 RPM and a robust 3-phase, 60Hz configuration, this motor is ideal for cooling systems and HVAC applications. The motor features a 56YZ frame and is built to withstand demanding environments, ensuring longevity and efficiency.

Key Features:

  • Type: Air-Over HP
  • Speed: 1170 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56YZ
  • Product Code: CFM3156A

At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CFM3156A to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568121498
Supplier Part Number CFM3156A
Category AC Motors
Subcategory Condensor Fan Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 38.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFM3156A
Current @ Voltage 1.700 A @ 460.0 V, 3.400 A @ 230.0 V, 3.500 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56YZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.7 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination None
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3522M
Mounting Arrangement F1
Number of Poles 6
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 16.30 IN
Phase 3
Power Factor 69
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Other
Pulley Shaft Indicator Key And Flat
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1170 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use Eve-Not Valiid
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location ES
Winding Thermal 2 None
