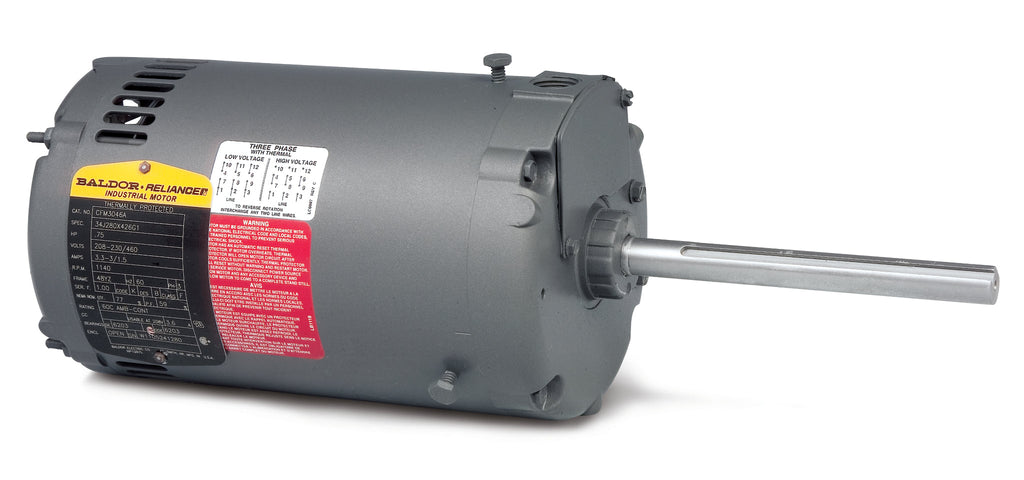

UPC
781568121481
Supplier Part Number
CFM3146A
Category
AC Motors
Subcategory
Condensor Fan Motors
Product Family
General Purpose
Agency Approvals
C UR US
Ambient Temperature
60 °C
Approximate Weight (lbs)
33.0
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
No Mounting
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
None
Catalog Number
CFM3146A
Current @ Voltage
1.350 A @ 460.0 V, 2.600 A @ 208.0 V, 2.700 A @ 230.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
77.0 %
Electrically Isolated Bearing
Not Electrically Isolated
Enclosure
OPEN
Feedback Device
NO FEEDBACK
Frame
56YZ
Frame Material
Steel
Frequency
60.00 Hz
Front Face Code
Standard
Front Shaft Indicator
None
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
1.4 a
Insulation Class
F
Inverter Code
Not Inverter
IP Rating
NONE
KVA Code
J
Lifting Lugs
No Lifting Lugs
Locked Bearing Indicator
No Locked Bearing
Motor Lead Exit
Terminal Panel
Motor Lead Quantity/Wire Size
12 @ 18 AWG
Motor Lead Termination
None
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
3520M
Mounting Arrangement
F1
Number of Poles
6
Output
0.750 hp
Output @ Frequency
.750 HP @ 60 HZ
Overall Length
15.30 IN
Phase
3
Power Factor
67
Pulley End Bearing Type
Sealed Bearing
Pulley Face Code
Other
Pulley Shaft Indicator
Key And Flat
Rodent Screen
None
Service Factor
1.15
Shaft Diameter
0.625 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
1160 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,200 rpm
Synchronous Speed @ Frequency
1200 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
Do Not Use Eve-Not Valiid
Vibration Sensor Indicator
No Vibration Sensor
Voltage
208 V, 230 V, 460 V
Voltage @ Frequency
208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1
Automatic Thermal Overload
Winding Thermal 1 Location
SB
Winding Thermal 2
None
