Baldor CEWDM3613T-5 - 5 HP, 3450RPM, 3 Phase, 60HZ, 184TC, 3630M, TEFC, F1 60HZ Three Phase 5 HP 3630 M Cable

Save $1,264.80
BaldorSKU: CEWDM3613T-5

Price:
Sale price$1,897.20 Regular price$3,162.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

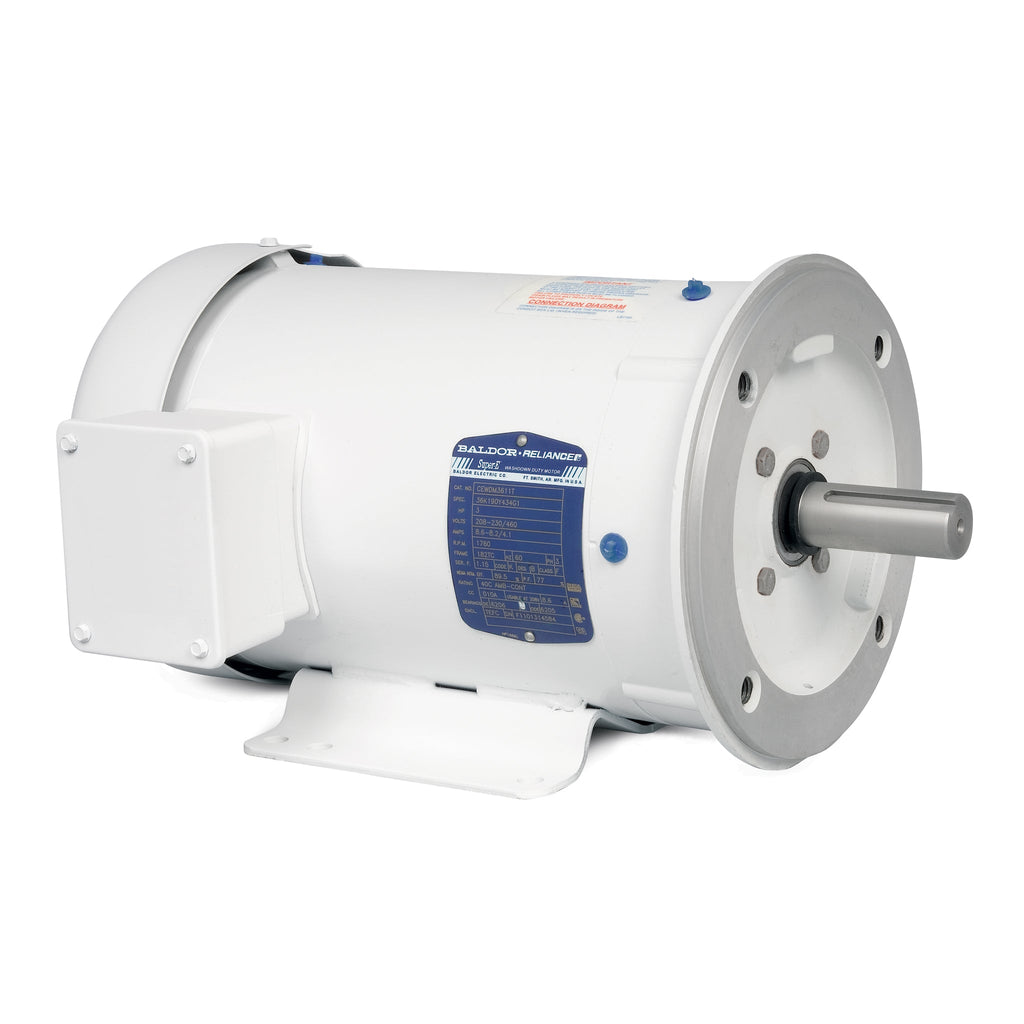

Baldor CEWDM3613T-5 - 5 HP White Washdown Motor

The Baldor CEWDM3613T-5 is a high-performance 5 HP, 3450 RPM, 3-phase electric motor designed specifically for washdown applications. With a robust TEFC (Totally Enclosed Fan Cooled) construction, this motor is built to withstand harsh environments while providing reliable operation. It operates at 60Hz and features a 184TC frame size, making it an ideal choice for various industrial and commercial applications.

Key Features:

  • Power: 5 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 184TC
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CEWDM3613T-5

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

UPC 781568692189
Supplier Part Number CEWDM3613T-5
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 70.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CEWDM3613T-5
Current @ Voltage 4.700 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 88.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.7 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3630M
Mounting Arrangement F1
Number of Poles 2
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 16.54 IN
Phase 3
Power Factor 91
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
