Baldor CEUHM3558T - 2/1.5KWHP, 1760 1/MIN IP44 IC411 32KGRPM IP44 Rating

Save $521.60
BaldorSKU: CEUHM3558T

Price:
Sale price$782.40 Regular price$1,304.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

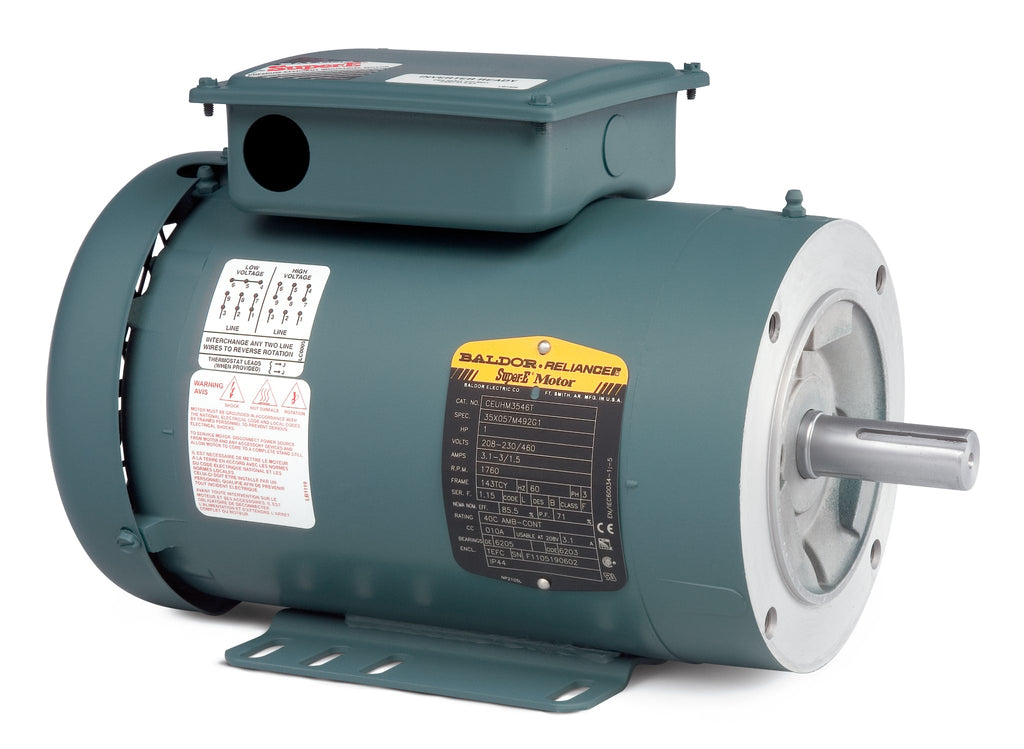

Baldor CEUHM3558T General Unit Handling Motor

The Baldor CEUHM3558T is a high-performance General Unit Handling Motor designed for reliable operation in various applications. With a power rating of 2/1.5KWHP and a speed of 1760 RPM, this motor is engineered to deliver efficient performance. It features an IP44 rating, ensuring protection against dust and water splashes, making it suitable for industrial environments.

Key specifications include:

  • Power: 2/1.5KWHP
  • Speed: 1760 RPM
  • IP Rating: IP44
  • IC Code: IC411
  • Weight: 32 KG

As a trusted vendor, Baldor provides durable and reliable motors that meet the demands of various applications. At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

We recommend checking your current pump for the exact part number or SKU that matches the Baldor CEUHM3558T to ensure compatibility. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568452943
Supplier Part Number CEUHM3558T
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals CE, CURUSEEV, NEMA_PREMIUM, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 50.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CEUHM3558T
Current @ Voltage 5.800 A @ 208.0 V, 5.600 A @ 230.0 V, 2.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TCY
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.8 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3528M
Mounting Arrangement F3
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.29 IN
Phase 3
Power Factor 77
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
