Baldor CESWDM3710T - 7.5 HP, 1770RPM, 3 Phase, 60HZ, 213TC, 3740M, TEFC 60HZ Three Phase 7.5 HP 3740 M Cable

Save $1,706.00
BaldorSKU: CESWDM3710T

Price:
Sale price$2,559.00 Regular price$4,265.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

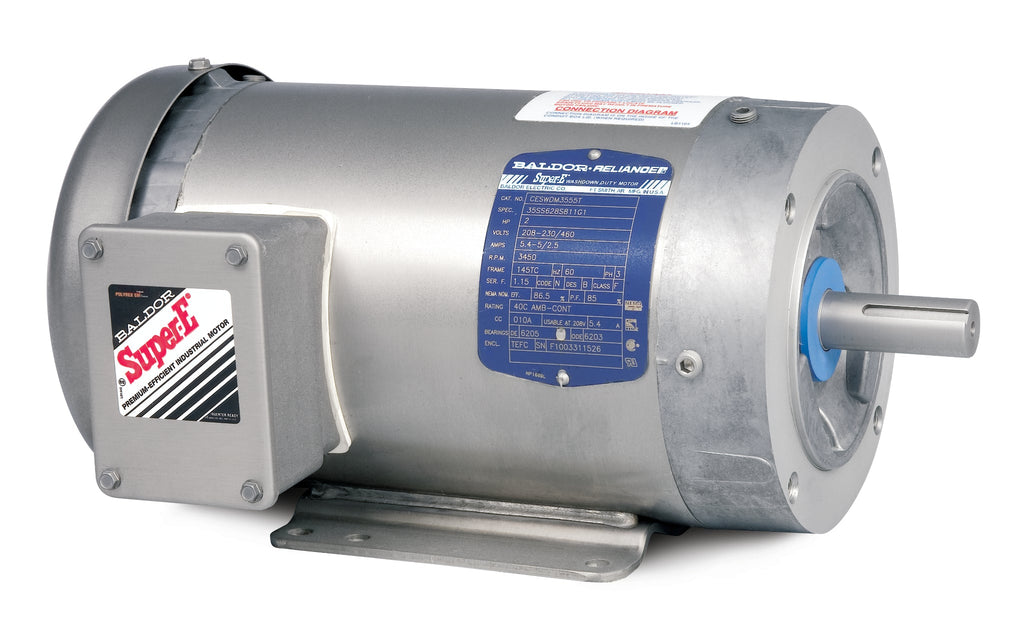

Baldor CESWDM3710T - 7.5 HP Paint Free Motor

Upgrade your pumping system with the Baldor CESWDM3710T, a high-performance 7.5 HP, 1770 RPM, 3-phase motor designed for reliability and efficiency. This TEFC (Totally Enclosed Fan Cooled) motor is perfect for various industrial applications, ensuring optimal performance in demanding environments.

Key Features:

  • Power: 7.5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 213TC
  • Model: 3740M
  • Type: Paint Free Motor

This Baldor-Reliance motor is engineered for durability and efficiency, making it an ideal choice for your pump systems. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor CESWDM3710T. If you have any questions or need help finding the right item, don’t hesitate to call us at (781) 281-8905.

UPC 781568503409
Supplier Part Number CESWDM3710T
Category AC Motors
Subcategory Paint Free Motors
Product Family Wash Down Paint Free
Agency Approvals CSA EEV, CURUSEEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 135.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CESWDM3710T
Current @ Voltage 9.500 A @ 460.0 V, 19.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 9.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3740M
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 19.81 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
