Baldor CESSWDM3711T - 10 HP, 3500RPM, 3 Phase, 60HZ, 215TC, 3744M, TEFC, F 60HZ Three Phase 10 HP 3744 M Cable Stainless Steel

Save $2,047.60
BaldorSKU: CESSWDM3711T

Price:
Sale price$3,071.40 Regular price$5,119.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

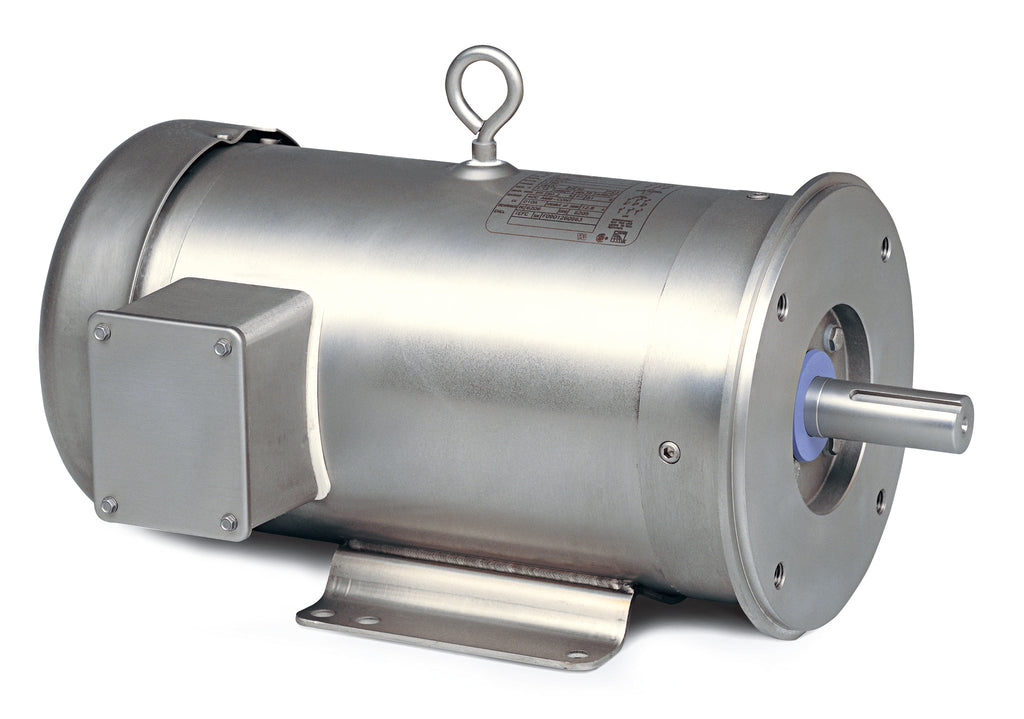

Baldor-Reliance Stainless Steel Motor - CESSWDM3711T

Upgrade your pumping system with the Baldor CESSWDM3711T, a high-performance stainless steel motor designed for durability and efficiency. This 10 HP motor operates at 3500 RPM and is engineered for three-phase applications at 60Hz, making it an ideal choice for various industrial and commercial uses.

  • Power: 10 HP
  • Speed: 3500 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 215TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CESSWDM3711T

This motor is built to withstand harsh environments, thanks to its stainless steel construction, making it resistant to corrosion and wear. Whether you are replacing an old motor or upgrading your system, the Baldor CESSWDM3711T is a reliable choice that ensures optimal performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568503386
Supplier Part Number CESSWDM3711T
Category AC Motors
Subcategory Stainless Steel Motors
Product Family Wash Down All Stainless Steel
Agency Approvals NEMA_PREMIUM, UR, CURUSEEV, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 184.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CESSWDM3711T
Current @ Voltage 21.200 A @ 230.0 V, 23.000 A @ 208.0 V, 10.600 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 10.6 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code L
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3744M
Mounting Arrangement F1
Number of Poles 2
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 20.07 IN
Phase 3
Power Factor 94
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3500 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
