Baldor CEM7075T - 3 HP, 3450RPM, 3 Phase, 60HZ, 145TC, 3532M, Xpfc, F1 60HZ Three Phase 3 HP 3532 M Cable

Save $657.20
BaldorSKU: CEM7075T

Price:
Sale price$985.80 Regular price$1,643.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

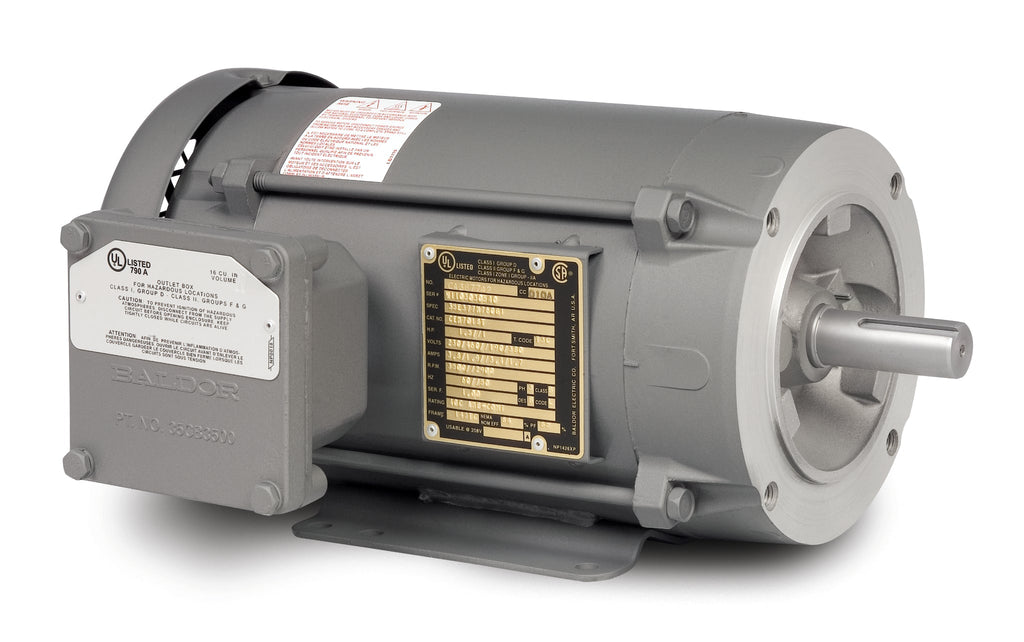

Baldor-Reliance Explosion Proof General Purpose Motor - CEM7075T

Introducing the Baldor CEM7075T, a robust and reliable 3 HP explosion proof general purpose motor designed for demanding industrial applications. Operating at 3450 RPM and powered by a 3-phase, 60Hz electrical supply, this motor is engineered to deliver exceptional performance and durability.

Key specifications include:

  • Horsepower: 3 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Type: Explosion Proof General Purpose Motor
  • Product Code: CEM7075T

This motor is ideal for applications requiring reliable operation in hazardous environments, ensuring safety and efficiency. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, including the Baldor CEM7075T motor. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568537534
Supplier Part Number CEM7075T
Category AC Motors
Subcategory Explosion Proof General Purpose Motors
Product Family Hazardous Location Motor
Agency Approvals UL, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 61.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CEM7075T
Current @ Voltage 3.600 A @ 460.0 V, 7.200 A @ 230.0 V, 7.900 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 143TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group D
Haz Area Division Division I
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 3.6 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3532M
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 16.10 IN
Phase 3
Power Factor 92
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
