Baldor CECP4308T - 40 HP, 1190RPM, 3 Phase, 60HZ, 364TC, A36062M, TEFC 60HZ Three Phase 40 HP

Save $6,597.20
BaldorSKU: CECP4308T

Price:
Sale price$9,895.80 Regular price$16,493.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

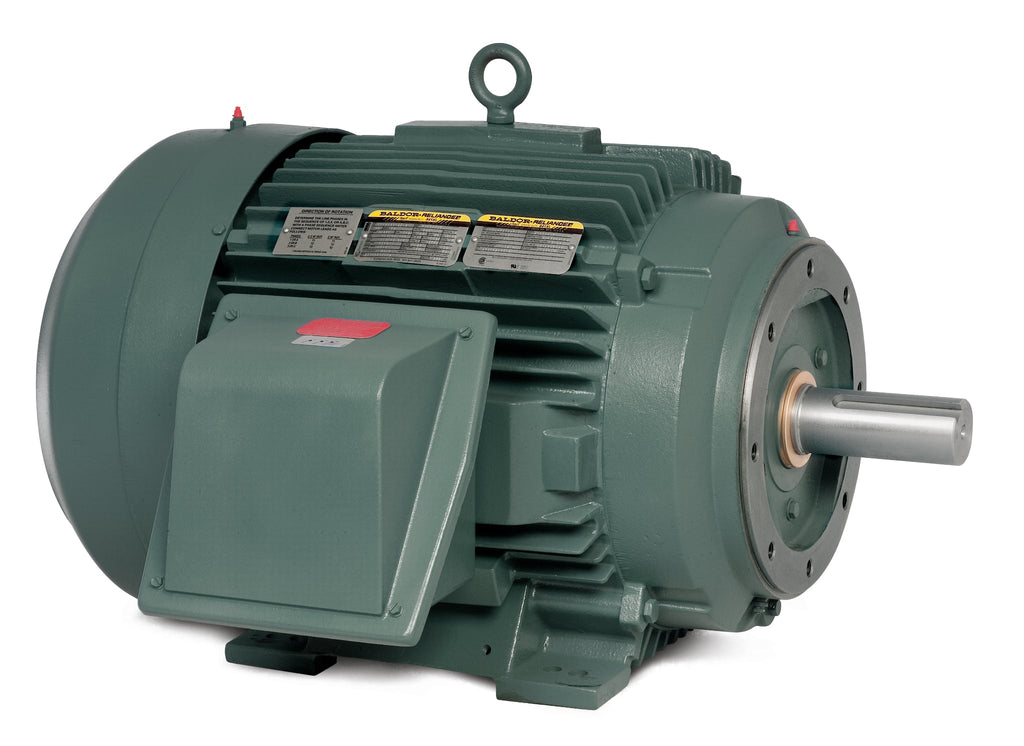

Baldor CECP4308T - 40 HP Severe Duty XEX Motor

Introducing the Baldor CECP4308T, a robust and reliable 40 HP Severe Duty XEX Motor designed for demanding industrial applications. Operating at 1190 RPM, this three-phase motor is engineered to deliver exceptional performance and durability. With a 60Hz frequency and a 364TC frame size, it is perfect for a variety of pump and machinery applications.

Key Features:

  • Power: 40 HP
  • Speed: 1190 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 364TC
  • Type: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: A36062M

As a trusted supplier, Pump-Stop.com is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CECP4308T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568726013
Supplier Part Number CECP4308T
Category AC Motors
Subcategory Severe Duty XEX Motors
Product Family General Industrial
Agency Approvals CCSAUSEEV, CURUSEEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 908.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number CECP4308T
Constant Torque Speed Range 6-60
Current @ Voltage 98.800 A @ 230.0 V, 49.400 A @ 460.0 V, 109.000 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 364TC
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3A
Heater Indicator No Heater
High Voltage Full Load Amps 49.4 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code G
Lifting Lugs Standard Lifting Lugs
Max Speed 2700 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36062M
Mounting Arrangement F1
Number of Poles 6
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 33.44 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1190 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
