Baldor CECP3769T - 7.5 HP, 3510RPM, 3 Phase, 60HZ, 213TC, 0732M, TEFC 60HZ Three Phase 7.5 HP 0732 M Cable

Save $1,474.40
BaldorSKU: CECP3769T

Price:
Sale price$2,211.60 Regular price$3,686.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

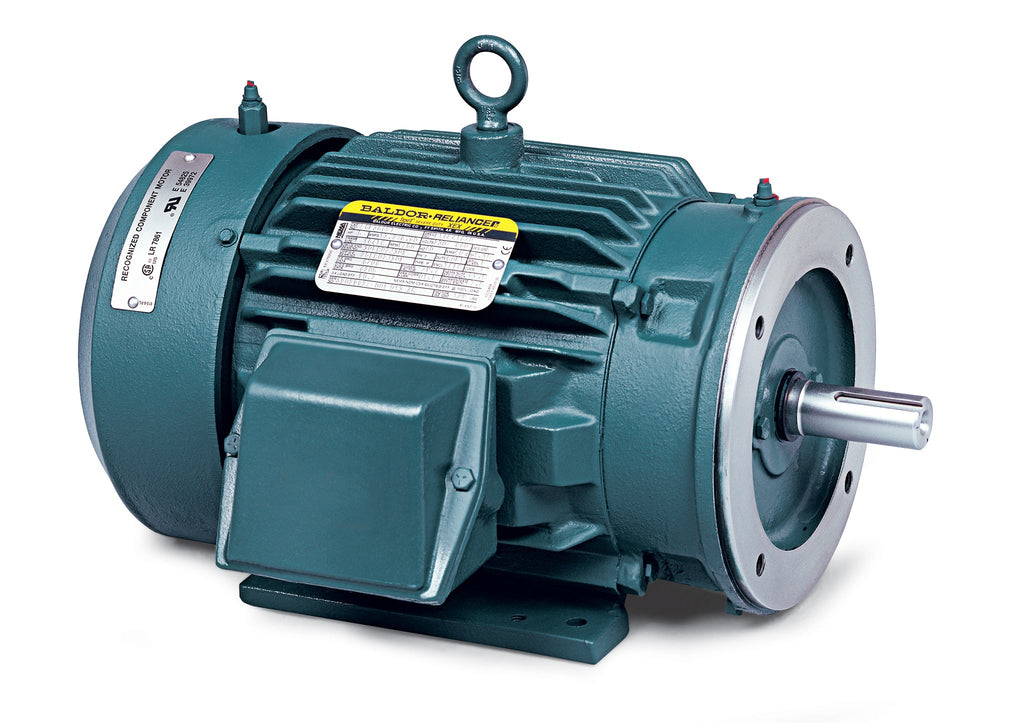

Baldor CECP3769T - 7.5 HP Severe Duty XEX Motor

Upgrade your industrial applications with the Baldor CECP3769T, a high-performance 7.5 HP motor designed for severe duty environments. Operating at 3510 RPM, this 3-phase motor is optimized for 60Hz power supply, ensuring reliable and efficient performance.

Key specifications include:

  • Power: 7.5 HP
  • Speed: 3510 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 213TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CECP3769T

This motor is ideal for a variety of applications, including pumps, fans, and compressors, making it a versatile choice for your operational needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your specific requirements.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CECP3769T to ensure compatibility. Don’t hesitate to reach out if you need help!

UPC 781568461747
Supplier Part Number CECP3769T
Category AC Motors
Subcategory Severe Duty XEX Motors
Product Family Chemical Processing (Not DC)
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 173.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CECP3769T
Constant Torque Speed Range 6
Current @ Voltage 17.200 A @ 230.0 V, 8.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Frame 213TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 8.6 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5400 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0732M
Mounting Arrangement F1
Number of Poles 2
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 20.24 IN
Phase 3
Power Factor 88
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3510 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
